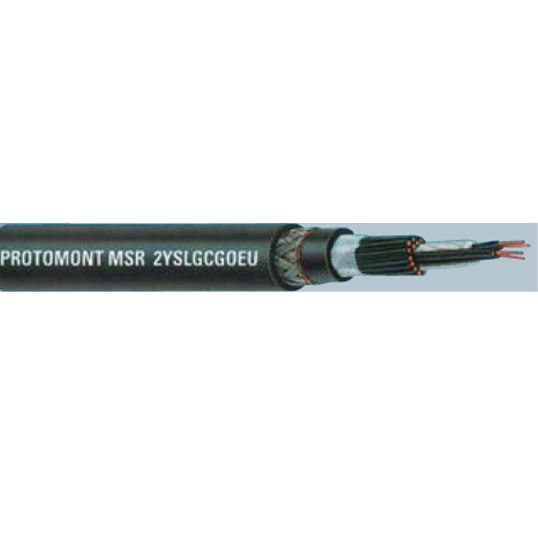

Siemens Mining MSR Data Signal and Control Cable 5 Pair 2 Core 1mm Copper 250/250V Polyethylene/CPE

$Siemens\Siemens_Mining_MSR.jpg$

Description

Data Signal and Control Cable 5 Pair 2 Core, 1 mm, Stranded Copper, 250/250 Volt, 2 Core, 5 Pairs, 32/0.2 mm Strands, Overall Screened, 17.3 mm Overall Diameter, Static 69.2 mm/Flexible 86.5 mm Bend Radius, 15 N/mm, Copper Braid Screen, Polyethylene Insulation, CPE Sheath, Black Sequentially Numbered Cores, Static -40 to 80 deg C/Flexible -25 to 80 deg C

Key Specifications

SKU	SIE5DM4996
Brand	Siemens
Product Type	Data Signal and Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DM4996
Bend Radius	Static 69.2 mm Flexible 86.5 mm
Conductor Type	Stranded Copper
Core Colours	Black Sequential Numerals
Conductor Size	1 mm
Insulation Material	Polyethylene
Number of Cores	2 Core
Number of Pairs	5 Pair
Overall Diameter	17.3 mm
Screen Material	Copper Braid
Screen Format	Overall Screened
Sheath Material	CPE
Stranding	32/0.2 mm
Tensile Strength	15 N/ mm
Voltage	250 Volt
Temperature	Static -40 to 80 deg C/ Flexible -25 to 80 deg C
