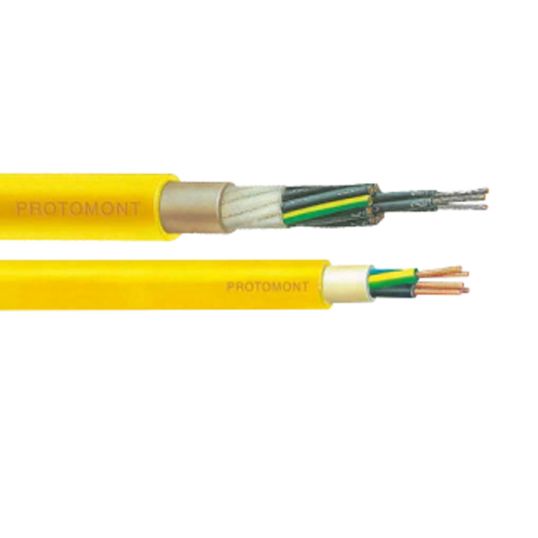

Siemens Protomont XHD Flexible Mining Cable Extra Heavy Duty Overall Screened 3 Core 0.6/1kV

Description

Flexible Mining Cable Extra Heavy Duty Overall Screened 3 Core, 3 x 2.5 + 3 x 2.5/3E + 3 x 1.5 mm, Stranded Copper, 0.6/1 kV, 3 Core, 50/0.25 mm Strands, Overall Screened, 18.1 mm Overall Diameter, Static 72.4 mm/Flexible 90.5 mm Bend Radius, 15 N/mm, R-EP-90 Elastomer Insulation, Heavy Duty PCP Sheath, Blue Brown Black Cores, Yellow Sheath, Static -40 to 80 deg C/Flexible -25 to 80 deg C, AS/NZS 3008.1.12017

Key Specifications

SKU	SIE5DM4624
Brand	Siemens
Range Name	Protomont
Product Type	Mining Cable Extra Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DM4624
Bend Radius	Static 72.4 mm Flexible 90.5 mm
Conductor Type	Stranded Copper
Core Colours	Black/Blue/Brown
Conductor Size	1.5 mm
Insulation Material	R-EP-90 Elastomer
Number of Cores	3 Core
Overall Diameter	18.1 mm
Sheath Colour	Yellow
Screen Format	Overall Screened
Sheath Material	Heavy Duty PCP
Standards	AS/NZS 3008.1.1:2017
Stranding	50/0.25 mm
Tensile Strength	15 N/ mm
Voltage	0.6-1 kV
Temperature	Static -40 to 80 deg C/ Flexible -25 to 80 deg C
