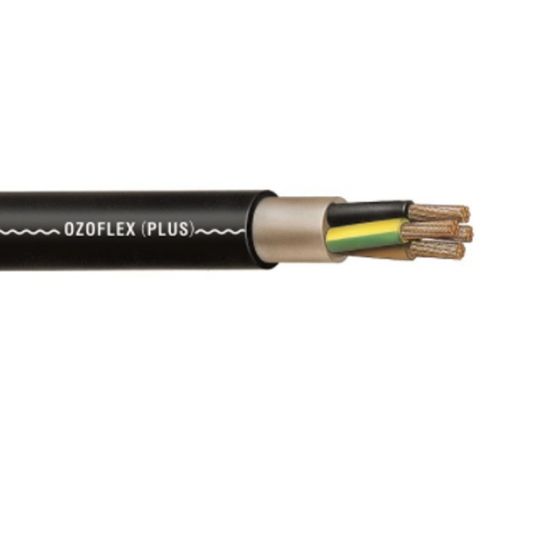

Siemens Ozoflex Plus Flexible Cable Submersible with Pilots 3 Core & Earth 6mm Copper 0.6/1kV R-EP-90/CPE Black
Loading...
Description
Submersible Cable, 6 mm, Stranded Copper, 0.6-1 kV, 4 Core + Earth, 75/0.31 mm Strands, 18.6 mm Overall Diameter, 2x1.5 mm Earth Conductor, Static 74.4 mm/ Flexible 93 mm Bend Radius, 15 N/mm Tensile Strength, Brown/Black/Grey/Green/Yellow Core, EPR (R-EP-90) Insulation, CPE Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1
Key Specifications
| SKU |
SIE5DH1072
|
|---|---|
| Brand |
Siemens
|
| Range Name |
Ozoflex
|
| Product Type |
Submersible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5DH1072 |
| Bend Radius | Static 74.4 mm/ Flexible 93 mm |
| Conductor Size | 6 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Black/Brown/Grey/Green/Yellow |
| Insulation Material | EPR (R-EP-90) |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 18.6 mm |
| Sheath Colour | Black |
| Sheath Material | CPE |
| Standards | AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1 |
| Stranding | 75/0.31 mm |
| Temperature | 90 deg C |
| Tensile Strength | 15 Nm |
| Voltage | 0.6-1 kV |
