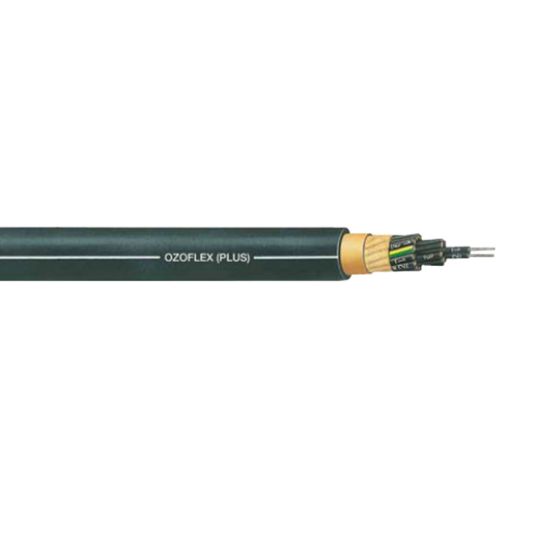

Siemens Ozoflex(Plus) Flexible: Submersible Cable 3 Core + Earth 35mm 0.6/1kV Copper R-EP-90/CPE CPE Elastomer
Loading...
Description
Flexible: Submersible Cable 3 Core + Earth, 35 mm, Stranded Copper, 0.6/1 kV, 3 + Earth, 271/0.41mm Strands, 9.2mm Nominal Diameter, 36.1mm Overall Diameter, Fixed Installation: 144.4mm, Freely Flexible: 180.5mm Bend Radius, 15 Nm Tensile Strength, Brown, Black, Grey, Green/Yellow Core, R-EP-90 Insulation, CPE Elastomer Sheath, 90 deg C, AS 1125, AS 3191, AS/NZS 5000-1
Key Specifications
| SKU |
SIE5DH1028
|
|---|---|
| Brand |
Siemens
|
| Range Name |
Ozoflex
|
| Product Type |
Submersible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5DH1028 |
| Bend Radius | Static 144.4 mm/Flexible 180.5 mm |
| Conductor Size | 35 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Black/Brown/Grey/Green/Yellow |
| Insulation Material | R-EP-90 Elastomer |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 36.1 mm |
| Sheath Material | CPE |
| Standards | AS 1125 AS 3191 AS/NZS 5000-1 |
| Stranding | 271/0.41 mm |
| Temperature | 90 deg C |
| Tensile Strength | 15 Nm |
| Voltage | 0.6-1 kV |
