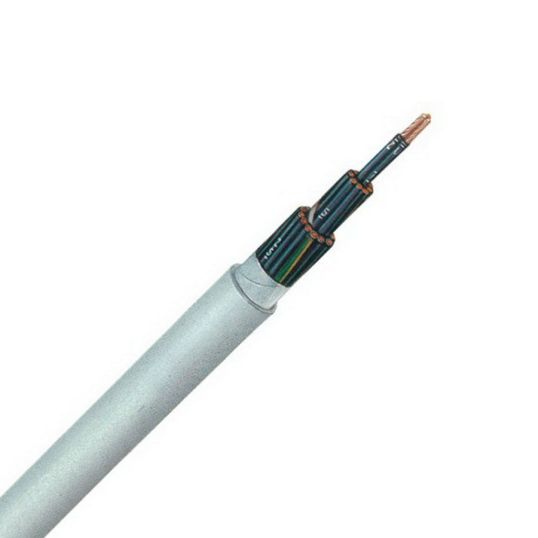

Siemens Protoflex Flexible Control Cable Unscreened 6 Core & Earth 0.75mm 0.3/0.5kV Copper PVC/PVC Grey

Description

Flexible Control Cable, 0.75 mm, Stranded Copper, 0.3-0.5 kV, 6 Core + Earth, 24/0.2 mm Strands, 7.5 mm Overall Diameter, Static 30 mm Flexible 56.25 mm Bend Radius, Static 50 N/mm Flexible 15 N/mm Tensile Strength, Black/Green/Yellow Core, V-75 PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 70 deg C Flexible -5 to 70 deg C, DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13

Key Specifications

SKU	SIE5DE7044
Brand	Siemens
Range Name	Protoflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DE7044
Bend Radius	Static 30 mm - Flexible 56.25 mm
Conductor Size	0.75 mm
Conductor Type	Stranded Copper
Core Colours	Black/Green/Yellow
Insulation Material	V-75 PVC
Number of Cores	6 Core + Earth
Overall Diameter	7.5 mm
Sheath Colour	Grey
Sheath Material	PVC
Standards	DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13
Stranding	24/0.2 mm
Temperature	Static -40 to 70 deg C Flexible -5 to 70 deg C
Tensile Strength	Static 50 Nm - Flexible 15 Nm
Voltage	0.3-0.5 kV
