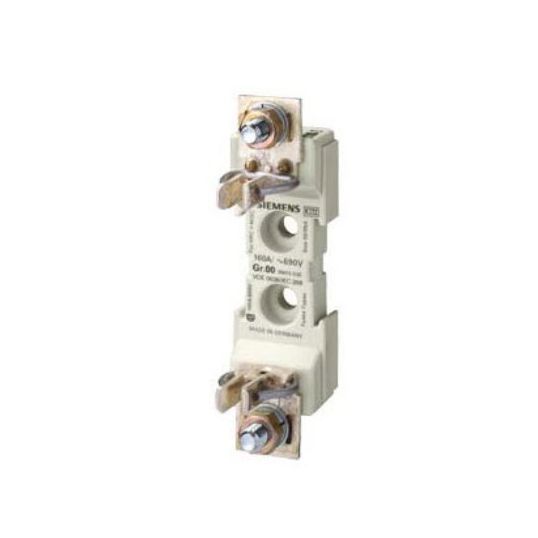

Siemens Open Fuse Base LV HRC 1 Pole DIN Size 00 160A 690VAC 25 kA
Loading...
Description
Open Fuse Base LV HRC, 690 VAC, 160 Amp, 6 to 70 mm Cable, Number of Poles: 1 Pole, M8 Screw Connection, Rated Breaking Capacity: 25 kA, Fixed Mounting, 122mm Height x 34mm Width x 60mm Depth, DIN Size 00, 3/Pack
Key Specifications
| SKU |
SIE3NH3030
|
|---|---|
| Brand |
Siemens
|
| Product Type |
Fuse Bases
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 3 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 3NH3030 |
| Connection Type | M8 Screw |
| Current | 160 Amp |
| Cable Size | 6-70 sq-mm |
| Dimensions | 122 mm Height x 34 mm Width x 60 mm Depth |
| Mounting Method | Fixed |
| Number Of Poles | 1 Pole |
| Pack Size | 3 Pack |
| Rated Breaking Capacity | 25 kA |
| Voltage | 690 Volt AC |
| Standard Reference | DIN Size 00 |
