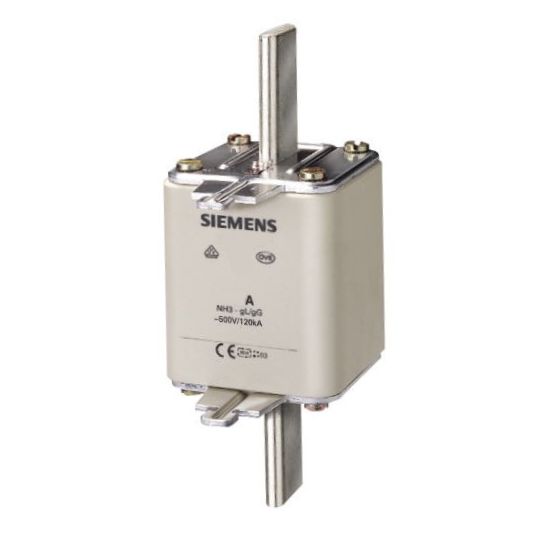

Siemens Fuse Link with Blade Contact HRC DIN NH 400A 500VAC/440VDC 120kA/25kA Class gG DIN Size 3
Loading...
Description
Fuse Link with Blade Contact HRC DIN NH, 500 VAC/440 VDC, 400 Amp, Interrupt Capacity: 120 kA/25 kA, Class gG,-5 to 40 deg C, 68mm Height x 57mm Width x 147.6mm Depth, DIN Size 3
Key Specifications
| SKU |
SIE3NA3360
|
|---|---|
| Brand |
Siemens
|
| Product Type |
Fuse Links HRC DIN
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 3 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 3NA3360 |
| Interrupt Capacity | 120 kA/25 kA |
| Current | 400 Amp |
| Dimensions | 68 mm Height x 57 mm Width x 147.6 mm Depth |
| Standard Reference | DIN Size 3 |
| Temperature | -5 to 40 deg C |
| Utilisation Category | Class gG |
| Voltage | 500 Volt AC/440 Volt DC |
