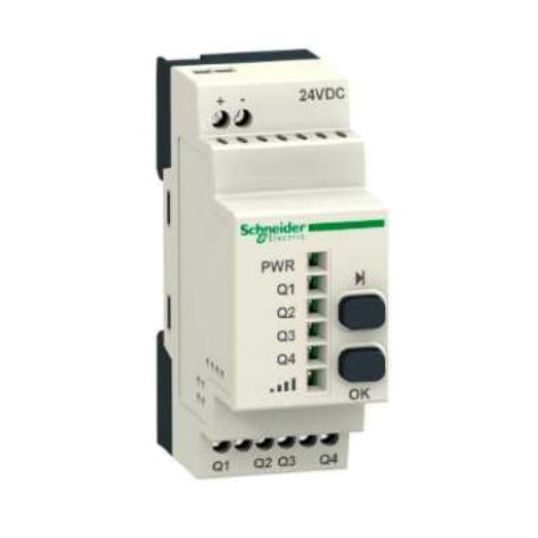

Schneider Programmable Receiver 4PNP 24VDC Monostable 200mA 1 Channel

$Schneider\Schneider_ZBRRC.jpg$

Description

Programmable Receiver, 4PNP, 24 Volt DC, 200 mA, 2 Button, 6 LED, Monostable, 1 Channel, IP20, DIN Rail Mounting Method, -40 to 70 deg C, 36 mm Width x 108 mm Height x 75 mm Depth

Key Specifications

Barcode (EAN-13)	3606480334719
SKU	SHNZBRRC
Brand	Schneider

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Quick and easy assembly and disassembly Robustness to withstand harsh environments With various types of connection screw clamp, connector, Faston connector, spring terminal, or printed circuit board A wide choice of contact blocks for general purposes or specific applications Excellent mechanical connection with operator head
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZBRRC
Channels	1 Channel
Current	200 mA
Dimensions	36 mm Width x 108 mm Height x 75 mm Depth
IP Rating	IP20
Mounting Method	DIN Rail
Please Note	4PNP / 24 Volt DC / 2 Buttons / 6 LEDs Monostable
Temperature	-40 to 70 deg C
