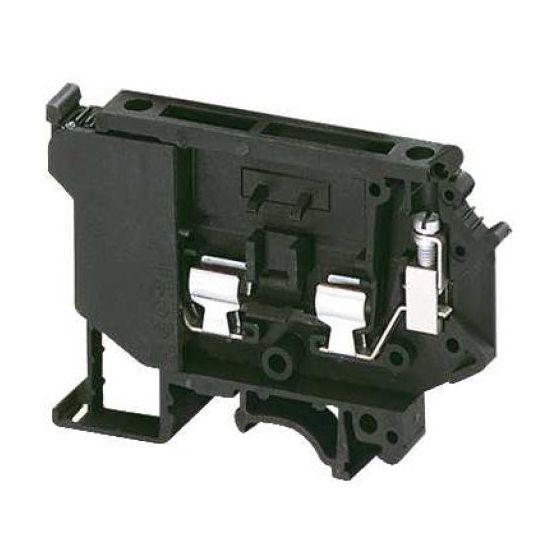

Schneider Rail Terminal Block Fused Screwed 2 Wire 1 Level 4mm Black Polyamide 66

$Schneider\Schneider_NSYTRV42SF5.jpg$

Description

Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 sq-mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with special enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Special, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 deg C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Key Specifications

Barcode (EAN-13)	3606480532337
SKU	SHNNSYTRV42SF5
Brand	Schneider
Range Name	Linergy
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For 5 x 20, 5 x 25, 5 x 30 mm cartridge fuse
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	NSYTRV42SF5
Colour	Black
Conductor Size	4.0mm
Current Rating	6.3 Amp
Depth	8.2 mm
Height	72.5 mm
Flammability	UL94 V0
Insulation Material	Polyamide 66
Mounting Method	Clip On
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Temperature	-40 to 130 deg C
Terminal Type	Screw
Tightening Torque	0.5-0.8 Nm
Voltage Rating	600 Volt
Width	56.5 mm
Wire Entry Orientation	Side
Wire Strip Length	8 mm
Wiring Format	2 Conductor Through/5x20 mm Fuse Screw
