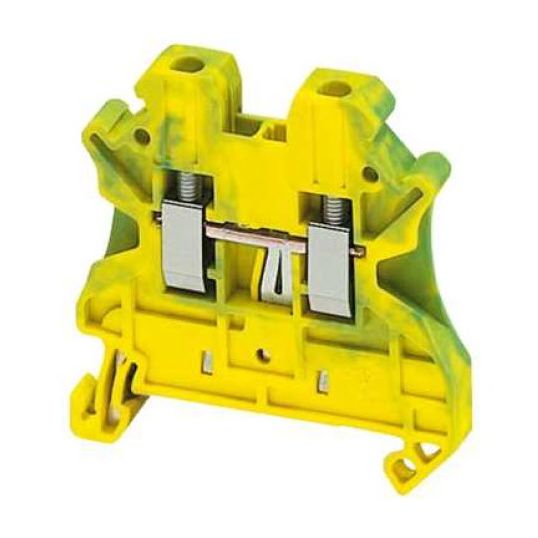

Schneider Rail Terminal Block Screwed 2 Wire 1 Level 2.5mm Green/Yellow Polyamide 66

Description

Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 sq-mm nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with special enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Special, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 deg C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Key Specifications

Barcode (EAN-13)	3606480531842
SKU	SHNNSYTRV22PE
Brand	Schneider
Range Name	Linergy
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	NSYTRV22PE
Colour	Green/Yellow
Conductor Size	2.5mm
Depth	5.2 mm
Flammability	UL94 V0
Height	47.7 mm
Insulation Material	Polyamide 66
Number of Conductors	2
Mounting Method	Clip On
Number of Connection Points	2
Number of Levels	1
Temperature	-40 to 130 deg C
Tightening Torque	0.5-0.6 Nm
Terminal Type	Screw
Width	47.5 mm
Wire Entry Orientation	Side
Wiring Format	2 Conductor Through
Wire Strip Length	9 mm
