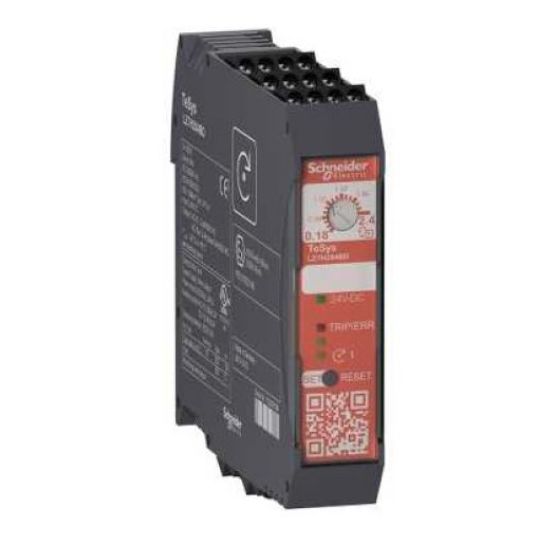

Schneider Motor Starter Reversing Direct On Line 0.75kW 2.4A 24VDC IP20

$Schneider\Schneider_LZ7H_TeSys.jpg$

Description

Motor Starter Reversing Direct On Line, 500 Volt AC, 2.4 Amp, 50/60 Hz, 0.75 kW, 0.37 kW at 220 Volt AC, 1.1 kW at 500 Volt AC, 24 Volt DC, Setting Range: 0.18-2.4 Amp, Manual/Automatic/Electrical Reset, Screw Clamp, IP20, Direct On Line, -25 to 70, -40 to 80 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth, Torque-Off

Key Specifications

Barcode (EAN-13)	3606485421094
SKU	SHNLZ8H2X4BD
Brand	Schneider
Range Name	TeSys
Product Type	Motor Starters Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LZ8H2X4BD
IP Rating	IP20
Voltage	500 Volt AC
Wattage	0.75 kW
Coil Voltage	24 Volt DC
Connection Type	Screw Clamp
Please Note	Torque-Off
Height	99 mm
Width	22.5 mm
Current	2.4 Amp
Depth	114.5 mm
Frequency	50/60 Hz
Motor Power	0.37 kW @ 220 Volt AC/1.1 kW @ 500 Volt AC
Operating Temperature	-40 to 80 deg C
