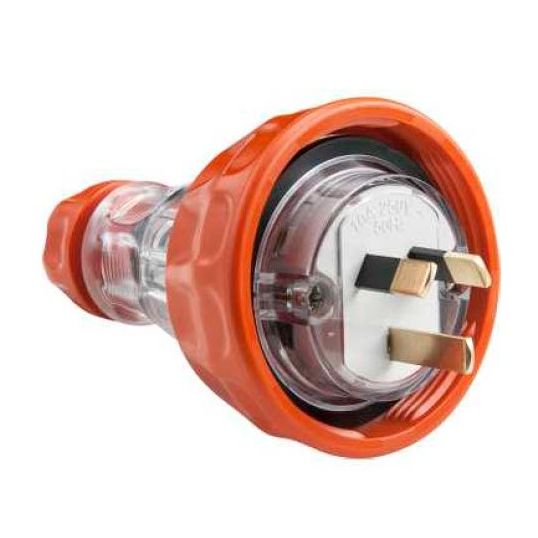

Schneider Plug Straight Body Weatherproof 1Ph 10A 250V 3 Pin Flat Orange IP66

$Schneider\Schneider_EY56P310.jpg$

Description

Plug Straight Weatherproof, 250 Volt, 10 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 0.75-1 sq-mm Terminal Capacity, Cable Gland Cable Entry, M20 Cable Gland Size, 6.8-10.6 mm Cable Nominal Diameter, IP66, Polycarbonate, Clear Body/Orange Plug, -25 to 75 deg C, 67 mm Height, 67 mm Width, 112.5 mm Depth

Key Specifications

Barcode (EAN-13)	9311554782382
SKU	SHNEY56P310
Brand	Schneider
Range Name	Easy56
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Locking rings to ensure IP66 rating Transparent body to view cable connections Transparent pin surround to view pins during plug insertion/removal
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	EY56P310
Angle	Straight
Cable Entry	Cable Gland
Colour	Clear Body/Orange Plug
Cable Gland Size	M20
Cable Nominal Diameter	6.8-10.6 mm
Connection Type	Screw
Current	10 Amp
Depth	112.5 mm
Height	67 mm
IP Rating	IP66
Material	Polycarbonate
Pin Configuration	3 Pin Flat
Phase	1 Phase
Temperature	-25 to 75 deg C
Terminal Capacity	0.75-1 sq-mm
Voltage	250 Volt
Width	67 mm
