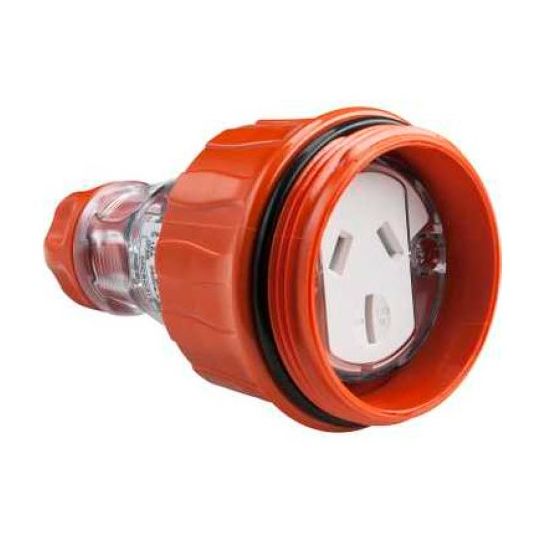

Schneider Extension Socket Appliance Connector Weatherproof 1Ph 15A 250V 3 Pin Flat Orange IP66

Description

Appliance Extension Socket Weatherproof, 250 Volt, 15 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 1.5 sq-mm Terminal Capacity, Cable Gland Cable Entry, M20 Cable Gland Size, 7.4-10.6 mm Cable Nominal Diameter, IP66, Polycarbonate, Clear Body/Orange Plug, -25 to 75 deg C, 65 mm Height, 65 mm Width, 105 mm Depth

Key Specifications

Barcode (EAN-13)	9311554783044
SKU	SHNEY56CSC315
Brand	Schneider
Range Name	Easy56
Product Type	Extension Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Locking rings to ensure IP66 rating Transparent body to view cable connections Transparent pin surround to view pins during plug insertion/removal
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	EY56CSC315
Angle	Straight
Cable Nominal Diameter	7.4-10.6 mm
Cable Gland Size	M20
Cable Entry	Cable Gland
Colour	Clear Body/Orange Plug
Connection Type	Screw
Current	15 Amp
Depth	105 mm
Height	65 mm
IP Rating	IP66
Material	Polycarbonate
Pin Configuration	3 Pin Flat
Phase	1 Phase
Terminal Capacity	1.5 sq-mm
Temperature	-25 to 75 deg C
Voltage	250 Volt
Width	65 mm
