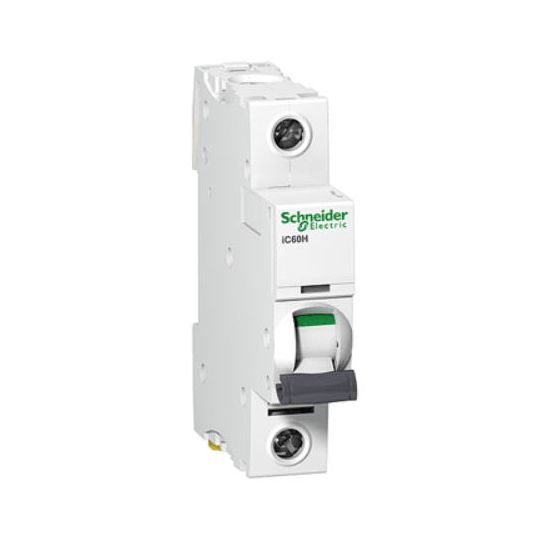

Schneider Miniature Circuit Breaker D Curve 25Amp 10kA 1Pole 1Module DIN 35mm Rail Mount

$Schneider\Schneider_Acti_9_iC60_1P.jpg$

Description

Miniature Circuit Breaker D Curve, 240 Volt, 25 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 1 Module 18 mm, 1 Pole, Toggle Actuator, 2 Nm Top/Bottom Tightening Torque, Single Terminal, 1-25 sq-mm Flexible/Rigid, IP20, DIN Rail Mounting, White, 35 to 70 deg C, 85 mm Height, 18 mm Width, 78.5 mm Depth

Key Specifications

Barcode (EAN-13)	3606480515231
SKU	SHNA9F55125
Brand	Schneider
Range Name	Acti 9 iC60H
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9F55125
Actuator Type	Toggle
Cable Size	1-25 sq-mm Flexible / Rigid
Colour	White
Current	25 Amp
Depth	78.5 mm
Frequency	50/60 Hz
Height	85 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	1 Module 18 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	35 to 70 deg C
Terminal Type	Single
Tightening Torque	2 Nm
Voltage	240 Volt
Width	18 mm
