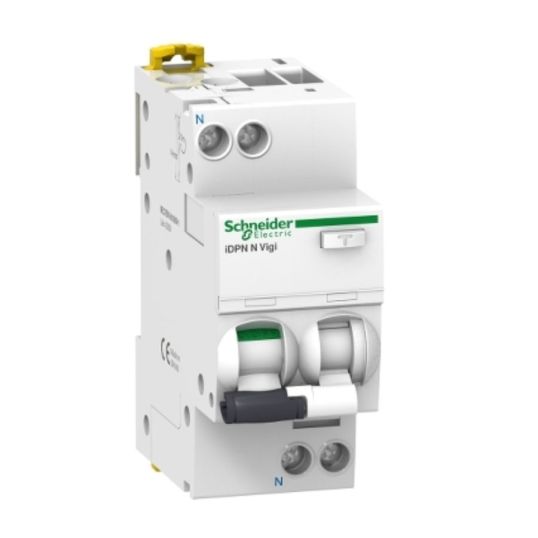

Schneider Combination RCD Circuit Breaker RCBO 1P+N 10 Amp 220-240V AC 6 kA 2Module 36mm DIN Rail

$Schneider\Schneider_A9D32610.jpg$

Description

Combination RCD Circuit Breaker RCBO, 220-240 Volt, 10 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 2 Module 36 mm, 1-10 sq-mm Flexible/ 1-16 sq-mm Rigid Terminal, IP20/40, DIN Rail Mounting, White, 25 to 60 deg C, 85 mm Height, 36 mm Width, 73 mm Depth

Key Specifications

Barcode (EAN-13)	3606480472053
SKU	SHNA9D32610
Brand	Schneider
Range Name	Acti 9
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9D32610
Colour	White
Current	10 Amp
Frequency	50 Hz
Depth	73 mm
Height	85 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Mounting Method	DIN Rail
Modules	2 Module 36 mm
Number Of Poles	1 Pole
Temperature	25 to 60 deg C
Terminal Connection	1-10 sq-mm Flexible / 1-16 sq-mm Rigid
Trip Sensitivity	30 mA
Trip Characteristic	C Curve
Voltage	220-240 Volt
Width	36 mm
