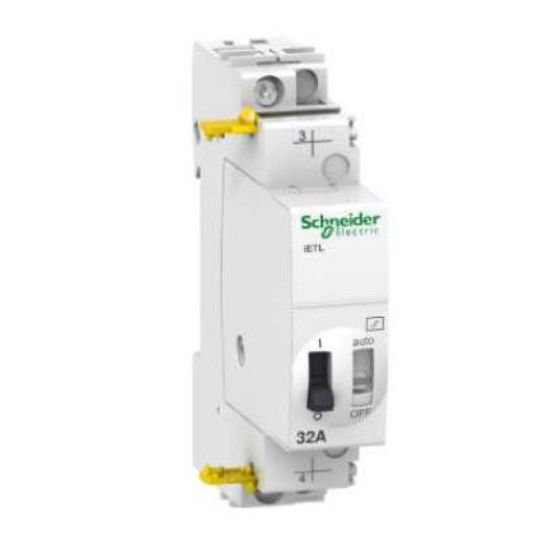

Schneider Impulse Relay Extension Module 1NO 32A 240V/110VDC DIN Rail Mount

Description

Impulse Relay Extension Module, 250 Volt AC, 240 Volt AC/110 Volt DC, 32 Amp, 1NO, Coil Deconnection, Remote and Manual, 200000 Cycles, AC-22: 100000 Cycles, Tightening Torque: 1 N/m, Tunnel Terminal, IP20, IP40, DIN Rail Mount, -20 to 50 deg C, 84 mm Height, 18 mm Width, 60 mm Depth

Key Specifications

Barcode (EAN-13)	3606480092039
SKU	SHNA9C32836
Brand	Schneider
Range Name	Acti 9 iETL
Product Type	Impulse Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	A9C32836
Contact Configuration	1 Normally Opened
Current	32 Amp
Control Type	Coil Deconnection/Remote and Manual
Depth	60 mm
Height	84 mm
IP Rating	IP20/40
Mounting Method	DIN Rail
Operating Coil Voltage	240 Volt AC/110 Volt DC
Operating Cycles	AC-21: 200000 Cycles, AC-22: 100000 Cycles
Temperature	-20 to 50 deg C
Terminal Type	Tunnel
Tightening Torque	1 N/m
Voltage	250 Volt AC
Width	18 mm
