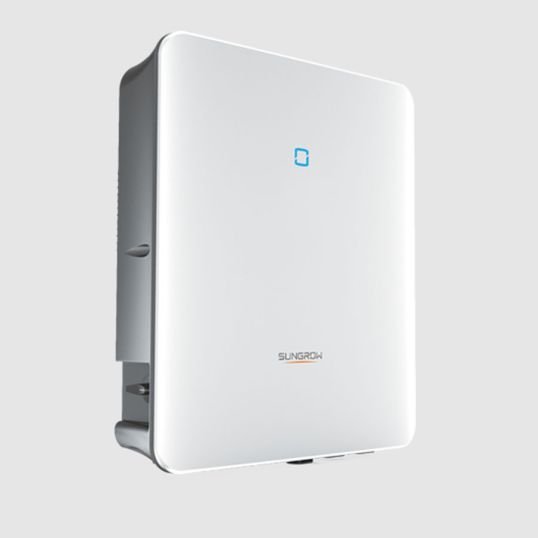

Sungrow 8kW Single Phase Hybrid Solar Inverter 4 MPPT IP65 AC

$Sungrow\Sungrow_SH8.0RS-ADA.JPG$

Description

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Built-in 63 Amp bypass for full house backup Peak output up to 13680 VA(10s) in backup mode Free online monitoring to enhance energy management Plug and Play installation
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SH8.0RS-ADA
AC Max. Apparent Power	8 kVA
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	220 / 230 / 240 Volt 1/N/PE
AC Operating Voltage	154-276 Volt
AC Output Current	36.4 Amp
AC Output Power	8 kW
Battery	80-460 Volt Lithium-ion
Connection Type	DC: MC4 / AC: Plug and Play
Communication Port	RS485 / Ethernet / WLAN / CAN
Cooling Method	Natural Convection
DC Input Power	16000 Watt
DC Input Voltage	40-600 Volt
DC Nominal Voltage	360 Volt
DC Max. Input Current	64 Amp
DC MPPT Voltage Range	40-560 Volt
DC Start-up Voltage	50 Volt
Depth	181 mm
DC Switch	Yes
Height	435 mm
Display Type	LED
IP Rating	IP65
Efficiency	97.40%
European Weighted Efficiency	96.80%
Max. Operating Altitude	4000 mtr
Mounting Method	Wall Mounting Bracket
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Noise Level	35 dBA
Number of MPPTs	4
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Topology	Transformerless
Width	605 mm
