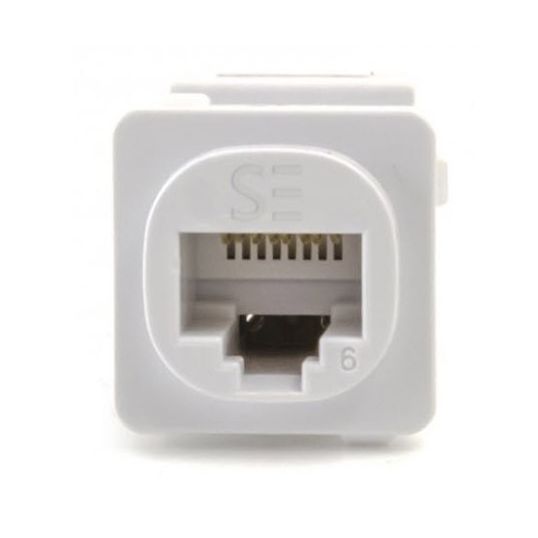

Serveredge Modular Jack Australian Style Cat6 UTP RJ45 Flush Mount 568A/B Plastic White 10 Pack

$Serveredge\Serveredge_CLMJC6-10WH.jpg$

Description

Modular Jack Cat6 UTP, 1.5 Amp, Solid: 22-24 AWG, RJ45 Connector, Cat6 UTP Cable, 1 mOhm Contact Resistance, 200 MOhm Insulation Resistance, 8 Pins, Wiring Scheme: 568A/B, 750 Insertion Cycles Durability, Flammability: UL 94V-0, Flush Mount Mount, Plastic Housing, Phosphor Bronze Contact Base, White,-40 to 70 deg C, 10 Pack

Key Specifications

Barcode (EAN-13)	9350784013248
SKU	SEVCLMJC6-10WH
Brand	Serveredge

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Backward compatible with Category 5e products Flexible locking tabs Universal colour-coding for 568A and 568B Standards Lead frame technology eliminates the possibility of PCB failures.
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	CLMJC6-10WH
Cable Type	Cat6 UTP
Colour	White
Conductor Size	Solid: 22-24 AWG
Connector	RJ45
Contact Base Material	Phosphor Bronze
Contact Resistance	1 mOhm
Current	1.5 Amp
Durability	750 Insertion Cycles
Flammability	UL 94V-0
Housing Material	Plastic
Insulation Resistance	200 MOhm
Number of Pins	8 Pin
Temperature	-40 to 70 deg C
Wiring Scheme	568A/B
