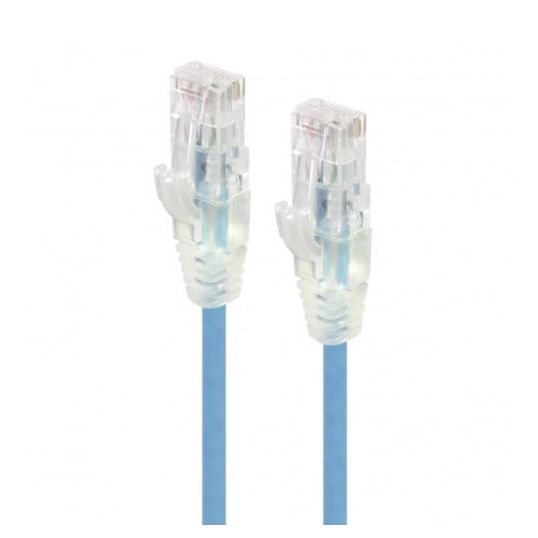

Serveredge UTP Network Cable Cat6 Ultra Slim RJ45-RJ45 28AWG LSZH Blue 2m

$Serveredge\ServerEdge_C6S-02BLU.jpg$

Description

Serveredge CAT 6 ultra slim networks cables are made from high quality copper stranded together in four twisted pairs. The outer shield protecting the internals of the cable is the Low smoke zero halogen. Can be used to connect a diversity of products together in a rapidly quick network.

Key Specifications

Barcode (EAN-13)	9350784011008
SKU	SEVC6S-02BLU
Brand	Serveredge

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Exceeds all ANSI/TIA-568-C.2 CAT 6 and ISO 11801 Class E Edition 2.1 electrical performance requirements Ultra Slim design saves valuable space Suitable for high density environment Flexible cable allows for high bend radius 50 micron gold plated connected connectors and 100% copper construction Fully Moulded tangle Free Snag-less boot allow for a clean and time saving install and move
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	C6S-02BLU
Conductor Material	Copper
Conductor Size	28 AWG
Connector B	RJ45
Connector A	RJ45
Contact Material	Gold Plated
Cord Length	2 mtr
Dielectric Strength	500 Volt AC 1 mins
Insulation Diameter	0.2 mm
Frequency Bandwidth	250 MHz
Insulation Material	HDPE
Outside Diameter	3.8 mm +/-0.15 mm
Pair Count	4 Pair
Plug DC Resistance	#26: 93.8 Ohm/km
Sheath Colour	Blue
Sheath Material	LSZH
Wiring Scheme	T568A
