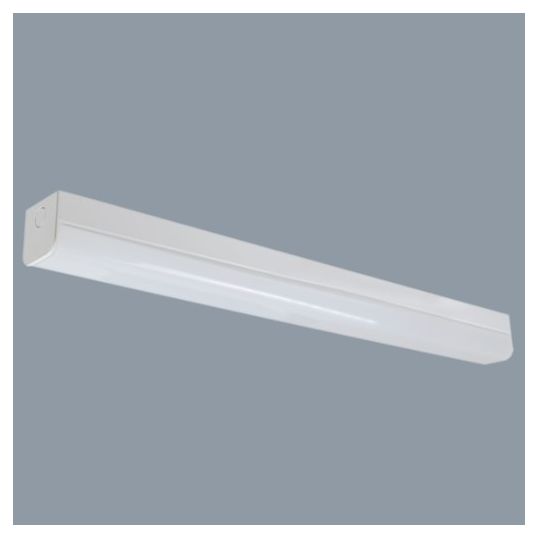

SAL LED Batten Diffused 12/20W 240V 1200/1900lm 3/4/5.7K White Narrow Integral Driver

$SAL_Lighting\SAL_SL9732-20TC-DP.jpg$

Description

LED Batten Diffused, LED, 12/20 Watt, 240 Volt AC, 50 Hz, Narrow Diffuser, Control Gear: Integral Driver, 1200/1900 Lumens, 3000/4000/5700K, CRI: 80, 60000 hr Calculated Average Lamp Life, Non-Dimmable, 120 deg Beam Angle, Warm White/Cool White/Daylight White, Ceiling Mounting, IP20, 25 deg C, Steel, White, 600 mm Length, 65 mm Width, 65 mm Height

Key Specifications

Barcode (EAN-13)	9328623118492
SKU	SALSL9732/20TC/DP
Brand	SAL
Product Type	LED Battens Diffused

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	65 mm narrow steel body Quality white powder coat finish with robust polycarbonate diffuser Large terminal block, easy installation Easy selectable colour temperature with an inbuilt DIP switch 3000K, 4000K, 5700K Integral constant current non-dimmable LED driver 20 and 40 Watt models, emergency options available compliant to AS/NZS2293
Standard Pack Size	1
UNSPSC Class	39111500
UOM	EA
Vendor Product	SL9732/20TC/DP-NLA
Average Lamp Life	60000 hrs Calculated
Beam Angle	120 deg
Colour	White
Colour Designation	Warm White/Cool White/Daylight White
Colour Temperature	3000/4000/5700K
Control Gear	Integral Driver
CRI	80
Diffuser Type	Narrow
Dimmable	Non-Dimmable
Height	65 mm
Input Frequency	50 Hz
Input Voltage	240 Volt AC
IP Rating	IP20
Light Source	LED
Lumens	1200/1900 lm
Mounting Method	Ceiling
Material	Steel
Temperature	25 deg C
Wattage	12/20 Watt
Width	65 mm
