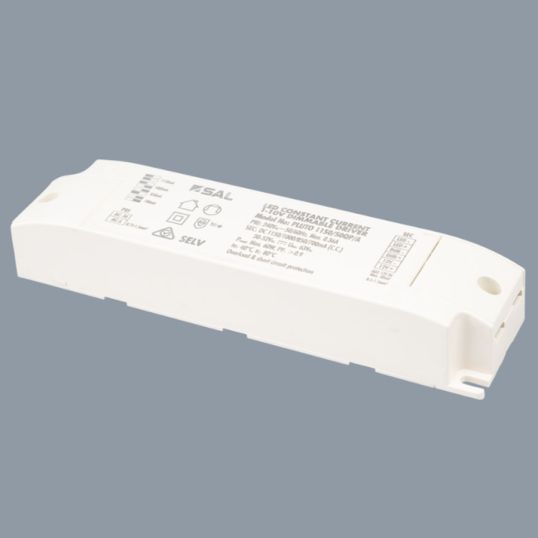

SAL Pluto LED Driver Constant Current 1-10V Dimming 240V 60W 1150mA IP20

$SAL_Lighting\SAL_PLUTO_1150-60QP-A.jpg$

Description

LED Driver, 240 Volt AC Input Voltage, 60 Watt, 1150 mA, 50 Hz, Dimmable, IP20, 0.9 Power Factor, 40 deg C, 180 mm Length, 46 mm Width, 30 mm Height

Looking for something specific? Search with keywords to help filter your required specifications.

Features	SELV and EMC compliant, safe no load operation Compact design profile, electrical class II Overload and short circuit protection Dimmable 1-10 Volt, dimming range 10%~100% Secondary output range 1150/1000/850/700mA Auxiliary 12 Volt DC power source (Max. sink current 40 mA)
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	PLUTO 1150/60QP/A
Current	1150 mA
Dimmable	Dimmable
Frequency	50 Hz
Height	30 mm
Input Voltage	240 Volt AC
IP Rating	IP20
Power Factor	0.9
Wattage	60 Watt
Temperature	40 deg C
Width	46 mm
