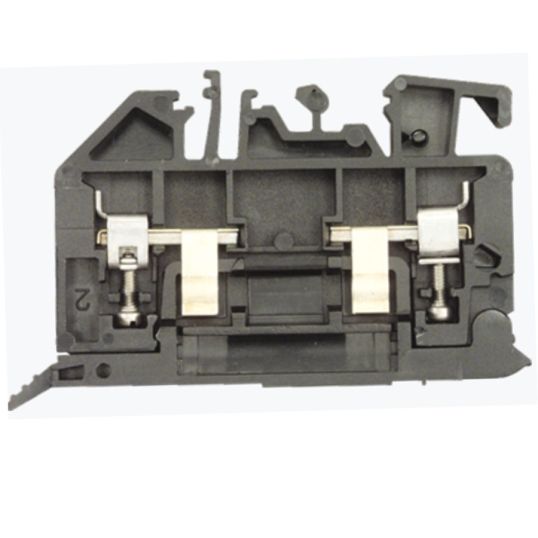

Sprecher+Schuh Fused Terminal Block Screwed 4mm Black 1 Level

$Sprecher\Sprecher_V7H5.jpg$

Description

Fused Terminal Block, 4 mm, 1 Conductors, 500 Volt, 9.7 mm Wire Strip Length, 0.8 Nm Tightening Torque, 1 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Black, UL94 V0 Flammability, 81.3 mm Height, 47 mm Width, 9.1 mm Depth

Key Specifications

SKU	S&SV7-H5
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals For 6.3 x 32 mm fuse
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7H5
Colour	Black
Conductor Size	4.0mm
Current Rating	12 Amp
Depth	9.1 mm
Height	81.3 mm
Flammability	UL94 V0
Marking Position	Terminal
Mounting Method	Rail
Number of Conductors	1
Number of Connection Points	1
Number of Levels	1
Terminal Type	Screw
Tightening Torque	0.8 Nm
Voltage Rating	500 Volt
Width	47 mm
Wire Strip Length	9.7 mm
