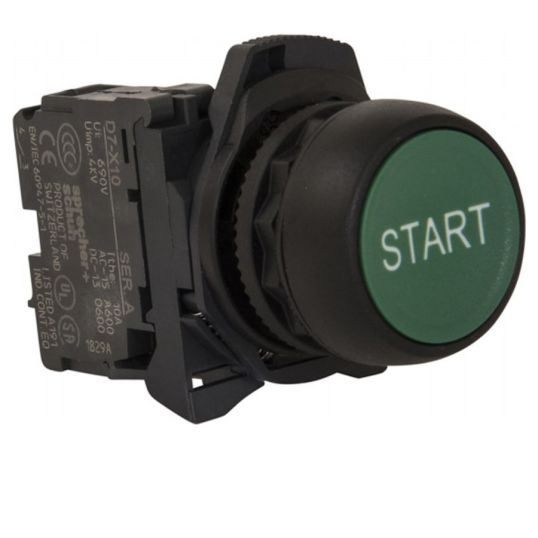

Pushbutton Complete Flush Head Plastic Body Thermoplastic k Non Illuminated Momentary 1NO Green 22.5mm Panel

Description

Pushbutton Complete Flush Head, 10 Amp, 1 Normally Opened Configuration, Non-Illuminated Momentary Action Operator Action, Green: Labelled START Operator Profile, 2.5 mm Operating Travel, Flush Head, Screw Terminal, 1.7 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP65/66/69, Thermoplastic Housing, Green, -25 to 70 deg C, 22.5 mm, 29.6 mm Diameter

Key Specifications

Barcode (EAN-13)	9321807003652
SKU	S&SD7PF30HS1PX10HS
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pushbuttons Complete

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PF30HS1PX10HS
Contact Configuration	1 Normally Opened
Colour	Green
Current	10 Amp
Diameter	29.6 mm
Head Type	Flush
Housing Material	Thermoplastic
IP Rating	IP65/66/69
Mounting Diameter	22.5 mm
Mounting Method	Panel
Operator Profile	Green: Labelled START
Operating Travel	2.5 mm
Operator Action	Non-Illuminated Momentary Action
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Size	22.5 mm
Tightening Torque	1.7 Nm
