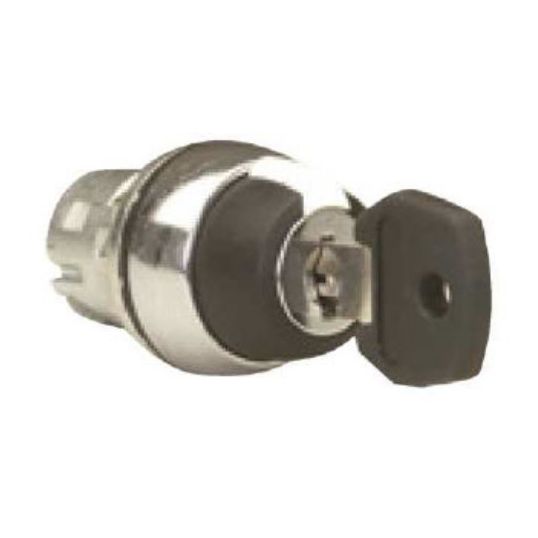

Sprecher+Schuh Keyed Selector Actuator Only 2 Position Metal Body Spring Return From Right

$Sprecher\Sprecher_D7MKR21.jpg$

Description

Keyed Selector Actuator Only 2 Position, Key Removal Left, Spring Return From Right, 11ms Response, IP65, IP66, 2 Standard Keys, 30000 Cycles, Tightening Torque: 4.4 N/m, Mounting Diameter: 22.5 mm, Panel Mount, Housing: Metal, Bezel: Zinc, Low Profile, -25 to 70 deg C, 29.6 mm Height x 21.2 mm Width

Key Specifications

Barcode (EAN-13)	9321807231413
SKU	S&SD7M-KR21
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Selector Actuators Keyed

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7MKR21
Actuator Type	2 Standard Keys
Height	29.6 mm
Housing Material	Metal
Key Function	Key Removal Left
IP Rating	IP65/66
Mounting Diameter	22.5 mm
Mounting Method	Panel
Operating Cycles	30000 Cycles
Operator Action	Spring Return Right
Operator Profile	Low Profile
Response Time	11 ms
Temperature	-25 to 70 deg C
Tightening Torque	4.4 Nm
Width	21.2 mm
