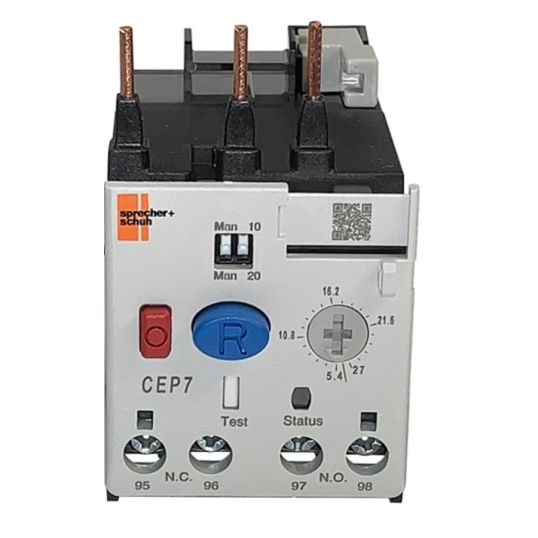

Sprecher+Schuh CEP7-1 Electronic Overload 1-5A 690VAC Class 10 and 20 Suit CA7-9/23 Contactors

Description

Electronic Overload Relay, 690 Volt AC Operational Voltage, 1-5 Amp Operational Current, Class 10/20, Direct Attachment Mounting, Screw Terminal, For Use With CA7-9 to CA7-23 Contactors, 86.6 mm Height, 44.8 mm Width, 84.7 mm Depth

Key Specifications

SKU	S&SCEP71EECB
Brand	Sprecher+Schuh
Range Name	CEP7-1
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Choice of overload type to suit your application requirements Compact dimensions saves panel space 5:1 wide current adjustment range to cover a variety of motor applications Supports both single and three-phase operation in a single component A variety of accessories available for enhanced protection Current measurement-based protection Electronic design and therman memory Phase loss protection Self-powered and direct-mount design with CA7 contactors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CEP71EECB
Depth	84.7 mm
For Use With	CA7-9 to CA7-23 Contactors
Height	86.6 mm
Mounting Method	Direct Attachment
Operational Current	1-5 Amp
Operational Voltage	690 Volt AC
Terminal Connection	Screw
Trip Characteristic	Class 10/20
Width	44.8 mm
