Miniature Contactor General Purpose AC Operated 3 Pole 2.2kW 4.9A AC3 20A AC1 240V 3NO Main 1NO Aux DIN Rail Mount

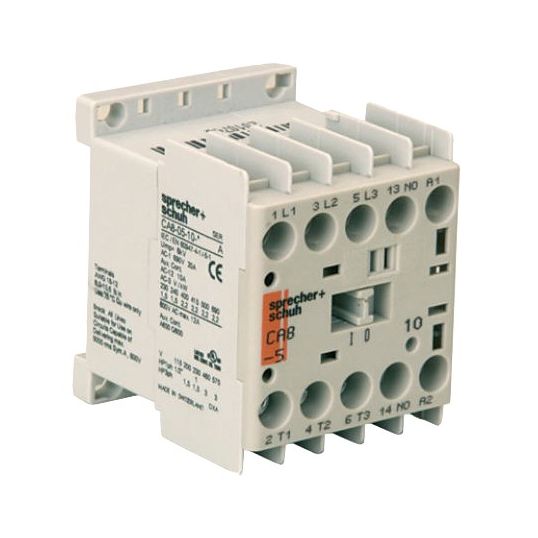

$Sprecher\Sprecher_CA8.jpg$

Description

Miniature General Purpose AC Operated Contactor, 240 Volt AC Coil Voltage, 3 Normally Opened/1 Normally Opened Aux Configuration, 2.2 kW AC3 AC3 Rating, 4.9/2.8 Amp AC3 AC3 Rating, 20 Amp AC1 AC1 Rating, 3 Pole, Screw Terminal, DIN Rail/Base Mounting, IP20, 56 mm Height, 44.9 mm Width, 53 mm Depth, Conventional Coil

Key Specifications

Barcode (EAN-13)	9321807225429
SKU	S&SCA8-5-10-240VAC
Brand	Sprecher+Schuh
Range Name	CA8
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Features low profile design and 45 mm width, permitting the use of enclosures with shallow mounting depths Accessories require no additional panel space Available in AC control coil versions to suit your application requirements Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA8510240VAC
AC1 Rating (Amps)	20 Amp AC1
AC3 Rating (Amps)	4.9/2.8 Amp AC3
AC3 Rating (kW)	2.2 kW AC3
Contact Configuration	3 Normally Opened & 1 Normally Opened Aux
Depth	53 mm
Height	56 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	240 Volt AC
Please Note	Conventional Coil
Terminal Connection	Screw
Width	44.9 mm
