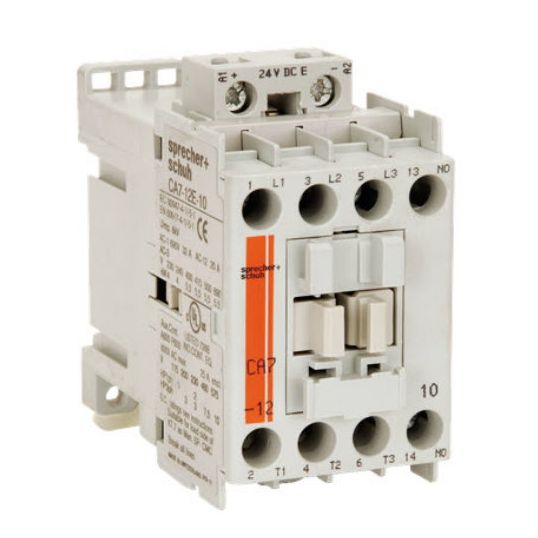

Contactor General Purpose DC Operated Non-Reversing 3 PoleW 9A AC3 32A AC1 12VDC 3NO Main 1NO Aux DIN Rail Mount

Description

Contactor General Purpose DC Operated Non-Reversing Standard, 12 Volt DC, AC3 Rating (kW): 4, AC3 Rating (Amps): 9 at 415 Volt, 5 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 45 mm Width, Conventional Coil

Key Specifications

SKU	S&SCA7-9E-10/12E
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA79E1012E
AC1 Rating (Amps)	32 Amp AC1
AC3 Rating (Amps)	9/5 Amp AC3
AC3 Rating (kW)	4 kW
Contact Configuration	3 Normally Opened & 1 Normally Opened Aux
Height	81 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Operating Coil Voltage	12 Volt DC
Please Note	Conventional Coil
Width	45 mm
