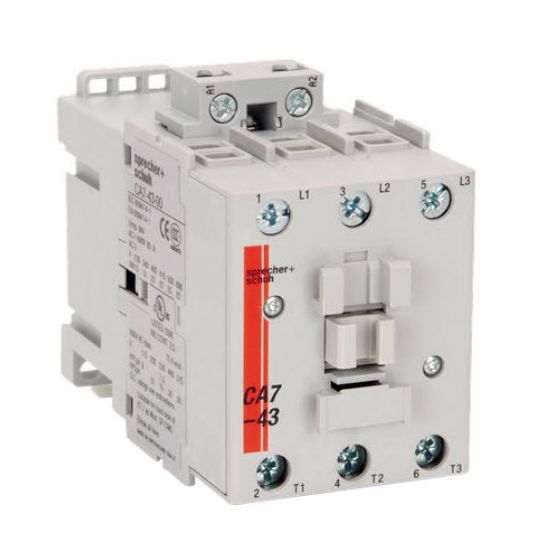

Contactor General Purpose DC Operated Non-Reversing 3 Pole 22kW 43A AC3 85A AC1 48VDC 3NO Main DIN Rail Mount

Description

Contactor General Purpose DC Operated Non-Reversing Standard, 48 Volt DC, AC3 Rating (kW): 22 at 415/690 Volt, AC3 Rating (Amps): 43 at 415 Volt, 25 at 690 volt, AC1 Rating (Amps): 85 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 54 mm Width, Conventional Coil

Key Specifications

SKU	S&SCA7-43E-00/48E
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA743E0048E
AC1 Rating (Amps)	85 Amp AC1
AC3 Rating (Amps)	43/25 Amp AC3
AC3 Rating (kW)	22 kW
Contact Configuration	3 Normally Opened
Height	81 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Operating Coil Voltage	48 Volt DC
Please Note	Conventional Coil
Width	54 mm
