Contactor General Purpose DC Operated Non-Reversing 3 Pole 22kW 43A AC3 85A AC1 24VDC 3NO Main Electronic DIN Rail Mount

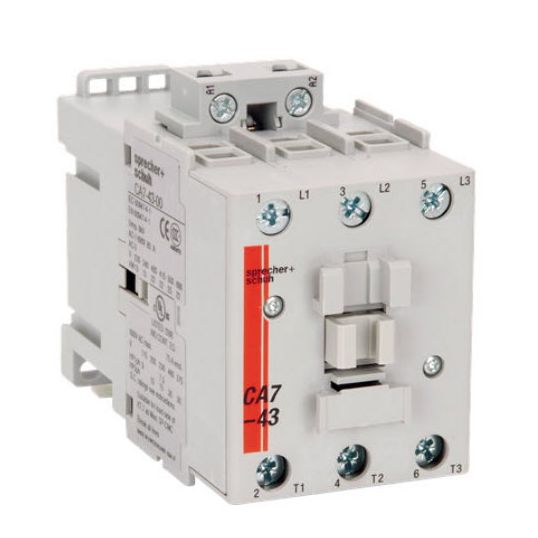

$Sprecher\Sprecher_CA7_43E.jpg$

Description

Contactor General Purpose DC Operated Non-Reversing Standard, 24 Volt DC, AC3 Rating (kW): 22 at 415/690 Volt, AC3 Rating (Amps): 43 at 415 Volt, 25 at 690 volt, AC1 Rating (Amps): 85 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 54 mm Width, Electronic Coil

Key Specifications

Barcode (EAN-13)	9321807225016
SKU	S&SCA7-43E-00/24VDC
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA743E0024VDC
AC1 Rating (Amps)	85 Amp AC1
AC3 Rating (Amps)	43/25 Amp AC3
Contact Configuration	3 Normally Opened
Height	81 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt DC
Please Note	Electronic Coil
Width	54 mm
