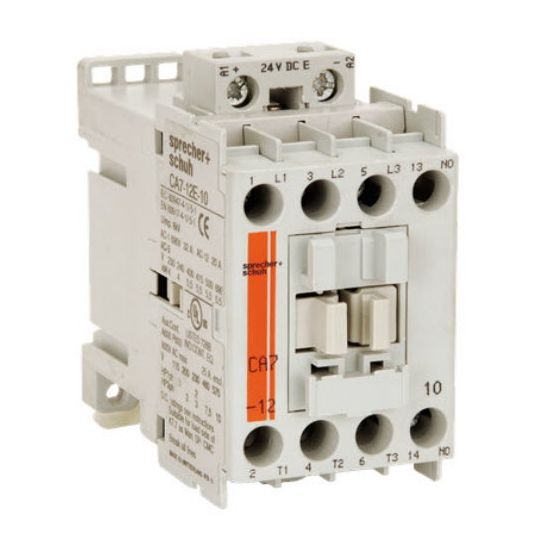

Contactor General Purpose DC Operated Non-Reversing 3 Pole 7.5kW 16A AC3 32A AC1 48-72VDC 3NO Main 1NO Aux DIN Rail Mnt

Description

Contactor General Purpose DC Operated Non-Reversing Standard, 48-72 Volt DC, AC3 Rating (kW): 7.5 at 415/690 Volt, AC3 Rating (Amps): 16 at 415 Volt, 9 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, DIN Rail Mount, IP20, 105 mm Height, 45 mm Width, Electronic Coil

Key Specifications

Barcode (EAN-13)	9321807224842
SKU	S&SCA7-16E-10/48E
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA716E1048E
AC1 Rating (Amps)	32 Amp AC1
AC3 Rating (Amps)	16/9 Amp AC3
AC3 Rating (kW)	7.5 kW
Contact Configuration	3 Normally Opened & 1 Normally Opened Aux
Height	105 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Operating Coil Voltage	48-72 Volt DC
Please Note	Electronic Coil
Width	45 mm
