Rinnai 7 kW Cooling 7.8 kW Heating 10.5A Cooling 10.8A Heating R32

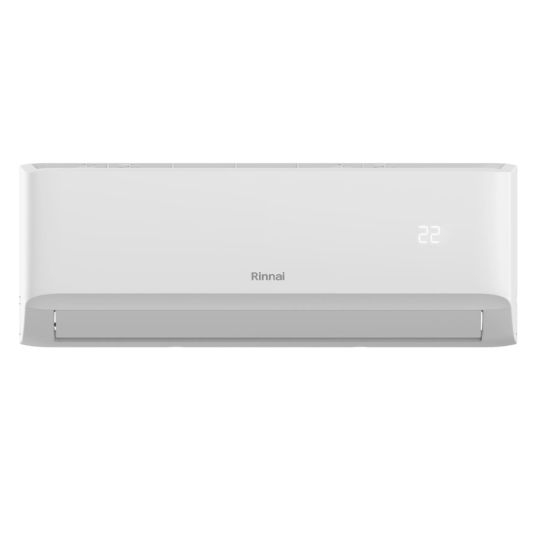

$Rinnai\Rinnai_HSNRPxxB.JPG$

Description

The Rinnai PB Series Condenser Coil is coated with our special GoldGuard coating making it more resistant to oxidation and corrosion than ordinary Condenser Coils. The GoldGuard condenser coil also improves the heating efficiency of the P Series in Reverse Cycle operation by accelerating the defrosting process.

Key Specifications

SKU	RINHSNRP70B
Brand	Rinnai
Range Name	PB SERIES

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wi-Fi Control- Set your favourite temperature from anywhere, with our intuitive Android or Apple App. Come home to ultimate comfort. Superior Corrosion Protection- The Rinnai PB Series Condenser Coil is coated with our GoldGuard coating making it more resistant to oxidation and corrosion than ordinary Condenser Coils. Inverter Technology- Powerful to heat and cool fast, but also smart, seamless operation to maintain consistent temperature and reduce running costs. Quiet Operation- Designed to keep noise levels to a minimum without affecting performance, thanks to its clever design optimised to deliver better air distribution. Dehumidifying Mode- Efficiently manages room humidity levels to ensure optimum comfort levels during humid summer days. Sleep Mode- The PB Series intelligent sleep mode operates on a two-way temperature control that modulates up and down to mimic outside ambient temperatures, ensuring a comfortable sleep.
Standard Pack Size	1
UNSPSC Class	40101700
UOM	EA
Vendor Product	HSNRP70B
Cooling Air Flow Rate	382-303-250-229-147 l/sec
Cooling Capacity	7 kW
Heating Capacity	7.8 kW
Indoor Dimensions	337 mm Height x 1082 mm Width x 234 mm Depth
Outdoor Dimensions	673 mm Height x 890 mm Width x 342 mm Depth
Power Supply	220-240 Volt / 50 Hz / 1 Phase
Refrigerant Type	R32
Sound Level	Pressure Level Indoor: 57.645/45/39/33.5/29.5 dBA / Pressure Level Outdoor: 61 dBA / Power Level Outdoor: 65 dBA
Please Note	Gold Guard PB
Temperature	-15 to 50 deg C Cool / -15 to 24 deg C Heat
Rated Current (Heating)	10.8 Amp
