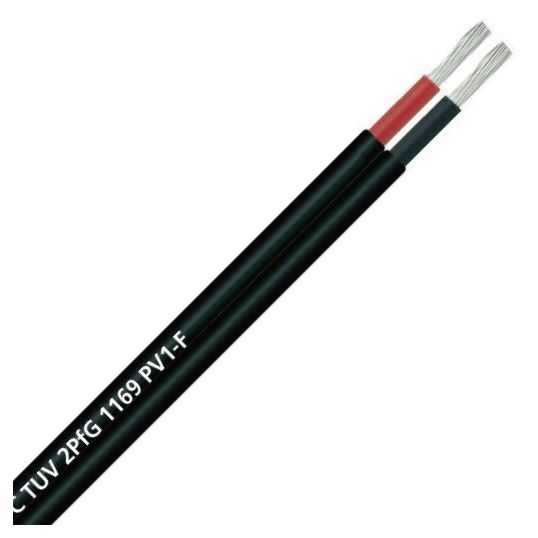

Ralos DC Solar Cable 2 Core 4mm 0.6/1kV XLPE/XLPE Black 100mtr

Description

These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

Key Specifications

SKU	RALRC2C4T100
Brand	Ralos
Product Type	Solar Cable DC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RC2C4T100
Bend Radius	Dynamic: 4 x d
Conductor Resistance	5.09 Ohm/km at 20 deg C
Current	55 Amp
Insulation Colour	Black/Red
Insulation Material	XLPE
Insulation Resistance	>=1000 Mohm/km
Number of Cores	2 Core
Overall Diameter	9.4 mm x 4.6 mm
Sheath Colour	Black
Sheath Material	XLPE
Standards	TUV 2PfG 1169/08.2007 T50400254
Stranding	50/0.35 mm
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV AC/1.8 kV DC
