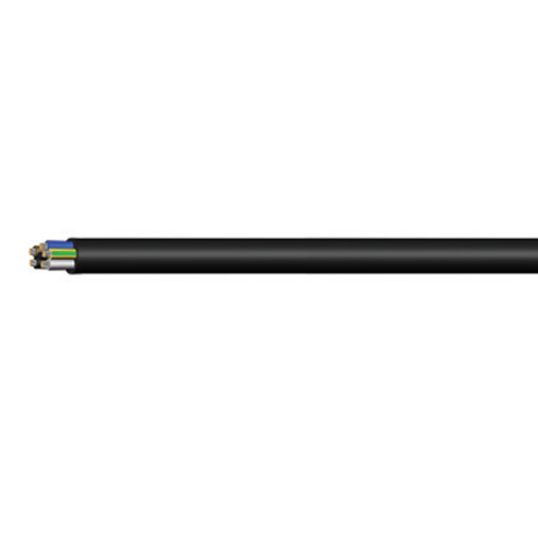

Ralos H07RN-F Power & Control Cable 4 Core + Earth 95mm 600/1000V Copper Rubber/Rubber Black

Description

Flexible Control Cable, 95 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 4 Core + Earth, 57.2 mm Overall Diameter, Static 228.8 mm Flexible 268.2 mm Mech Load 357.6 mm Bend Radius, 1.8 mm Insulation Thickness, 6.3 mm Sheath Thickness, 0.21 Ohm/km Conductor Resistance, Blue/Brown/Black/Grey/Green/Yellow Core, EPR Insulation, EM2 CPE Sheath, Black Sheath, Static -40 to 90 deg C Flexible -25 to 90 deg C, BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2

Key Specifications

SKU	RALRB5G95
Brand	Ralos
Range Name	H07RN-F
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RB5G95
Bend Radius	Static 228.8 mm - Flexible 268.2 mm - Mech Load 357.6 mm
Conductor Resistance	0.21 Ohm/km
Conductor Size	95 mm
Conductor Type	Class 5 Tinned Annealed Copper
Core Colours	Blue/Brown/Black/Grey/Green/Yellow
Insulation Material	EPR
Insulation Thickness	1.8 mm
Number of Cores	4 Core + Earth
Overall Diameter	57.2 mm
Sheath Colour	Black
Sheath Material	EM2 CPE
Sheath Thickness	6.3 mm
Standards	BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2
Temperature	Static -40 to 90 deg C Flexible -25 to 90 deg C
Voltage	0.6-1 kV
