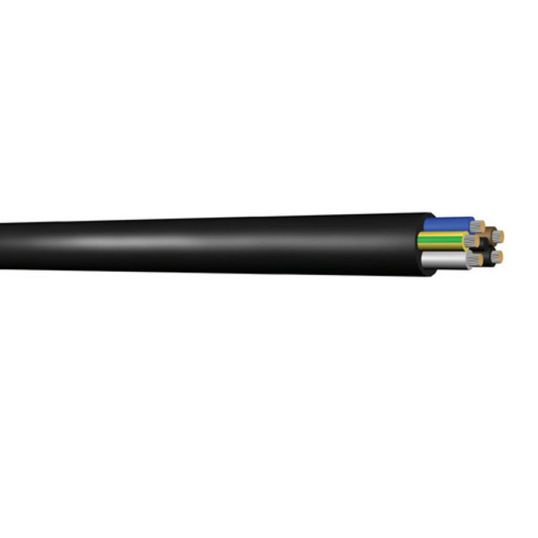

Ralos Flexible Cable 4 Core+Earth 2.5mm 600/1000V Copper Ethylene-Propylene Rubber/Rubber Black

Description

Flexible Cable, 2.5 mm, Class 5 Tinned Copper, 0.6-1 kV, 4 Core + Earth, 13.7 mm Overall Diameter, Static 41.1 mm Flexible 54.8 mm Bend Radius, 0.9 mm Insulation Thickness, 2 mm Sheath Thickness, Brown/Black/Grey/Green/Yellow Core, EPR Insulation, CPR Sheath, Black Sheath, -40 to 90 deg C, BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2

Key Specifications

SKU	RALRB5G2.5
Brand	Ralos
Range Name	H07RN-F
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 500 metres UV resistant Flame retardant Oil resistant Tinned conductors
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RB5G2.5
Bend Radius	Static 41.1 mm - Flexible 54.8 mm
Conductor Size	2.5 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	Brown/Black/Grey/Green/Yellow
Insulation Material	EPR
Insulation Thickness	0.9 mm
Number of Cores	4 Core + Earth
Overall Diameter	13.7 mm
Sheath Colour	Black
Sheath Material	CPR
Sheath Thickness	2 mm
Standards	BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
