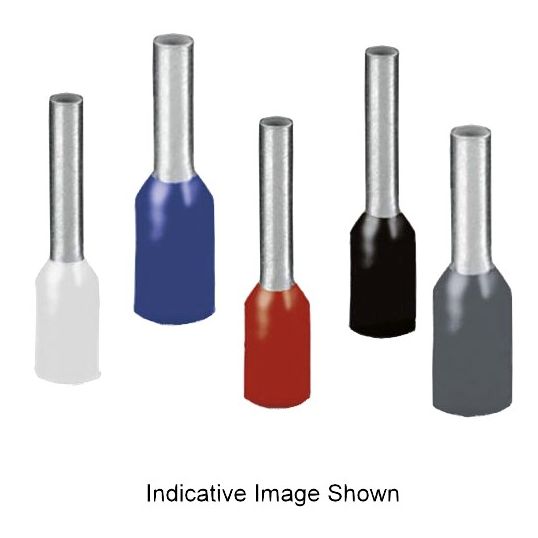

Phoenix Contact Bootlace Ferrule Insulated with Collar 2.5mm 2.3x12mm Pin Grey 19mm OAL

Description

Bootlace Ferrule, Insulated with Collar, Conductor Size: 2.5 mm, 19mm Overall Length, Max. Wire Strip Length: 15mm, Collar Inside Diameter: 4.2mm, Collar Thickness: 0.3mm, Pin Diameter: 2.3mm, Pin Length: 12mm, Pin Thickness: 0.15mm, Sleeve Material: Electrolytic Copper, Insulation Material: Polypropylene, Tin Plated Finish, Grey Insulation, Flammability: UL94-HB, 105 deg C, 100 Pack, with Collar

Key Specifications

SKU	PHO3200205
Brand	Phoenix Contact
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The metal sleeves are made from soft tin plated electrolytic copper The colour code of the plastic insulating collar is based on the French standard NF C 63-023: 1994-02
Standard Pack Size	100
UNSPSC Class	39121400
UOM	PK
Vendor Product	3200205
Collar Thickness	0.3 mm
Collar Inside Diameter	4.2 mm
Conductor Size	2.5 mm
Finish	Tin Plated
Flammability	UL94-HB
Insulation Colour	Grey
Pin Diameter	2.3 mm
Pin Length	12 mm
Pack Size	100 Pack
Overall Length	19 mm
Pin Thickness	0.15 mm
Please Note	with Collar
Sleeve Material	Electrolytic Copper
Temperature	105 deg C
Wire Strip Length	15 mm
