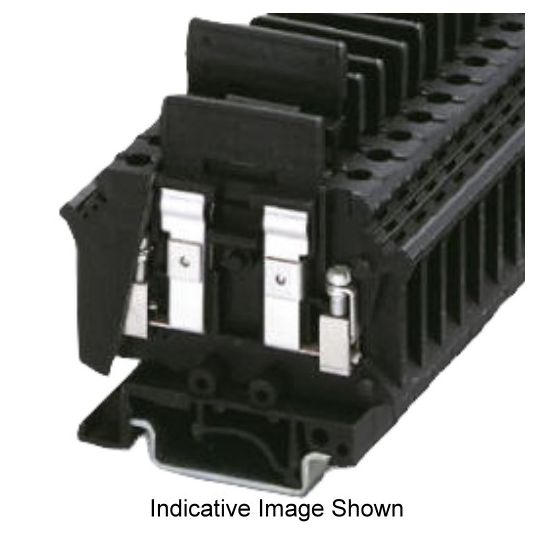

Phoenix Contact Fused Terminal Block Screwed 2 Wire 1 Level 0.2-4mm Blue Polyamide

Description

Fused Terminal Block, 400 Volt, Rated Surge Voltage: 4 kV, 6.3 Amp, 0.2-4mm Conductor, 2 Conductors, Wire Strip Length: 9 mm, Tightening Torque: 0.6 to 0.8 N/m, Wiring Format: 2 Conductor, 2 Connection Points, 1 Level, Screw Terminal, Rail Mount, Insulation Material: Polyamide, Blue, -60 to 105 deg C, Flammability: V0, Height: 58 mm NS 35/7,5, 65.5 mm NS 35/15, 63 mm NS 32, 59.5 mm Width, 8.2 mm Depth

Key Specifications

SKU	PHO3118096
Brand	Phoenix Contact
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For cartridge fuse inserts 5 x 20 and 5 x 25
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3118096
Colour	Blue
Conductor Size	0.2-4mm
Current Rating	6.3 Amp
Depth	8.2 mm
Height	58 mm NS 35/75; 65.5 mm NS 35/15; 63 mm NS 32
Flammability	V0
Insulation Material	Polyamide
Mounting Method	Rail
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	4 kV
Terminal Type	Screw
Tightening Torque	0.6-0.8 Nm
Voltage Rating	400 Volt
Width	59.5 mm
Wire Strip Length	9 mm
Wiring Format	2 Conductor
