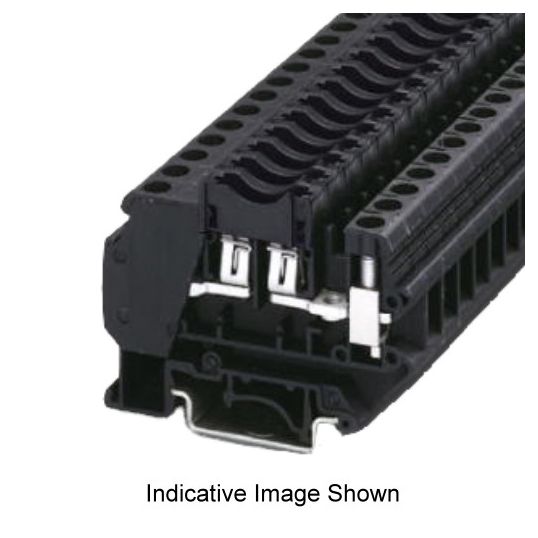

Phoenix Contact Fused Terminal Block Screwed 2 Wire 1 Level 0.2-6mm Black Polyamide

$Phoenix_Contact\Phoenix_Contact_3001925_1938.jpg$

Description

Fuse Modular Terminal Block, 0.2-10 mm, 2 Conductors, 250 Volt, 4 kV Rated Surge Voltage, 30 Amp, 10 mm Wire Strip Length, 1.5-1.8 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Black, -60 to 110 deg C, UL94 V0 Flammability, 64 mm Height, 8.2 mm Width, 52 mm NS 35/75; 59.5 mm NS 35/15; 57 mm NS 32 Depth

Key Specifications

SKU	PHO3001938
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Can be bridged with FBI ... fixed bridge For the use of KFZ flat-type fuses from the FSI/C series
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3001938
Current Rating	30 Amp
Colour	Black
Conductor Size	0.2-10mm
Depth	52 mm NS 35/75 - 59.5 mm NS 35/15 - 57 mm NS 32
Flammability	UL94 V0
Height	64 mm
Insulation Material	Polyamide
Number of Conductors	2
Mounting Method	NS 35/15 - NS 35/75
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	4 kV
Temperature	-60 to 110 deg C
Tightening Torque	1.5-1.8 Nm
Terminal Type	Screw
Voltage Rating	250 Volt
Width	8.2 mm
Wiring Format	2 Conductor
Wire Strip Length	10 mm
