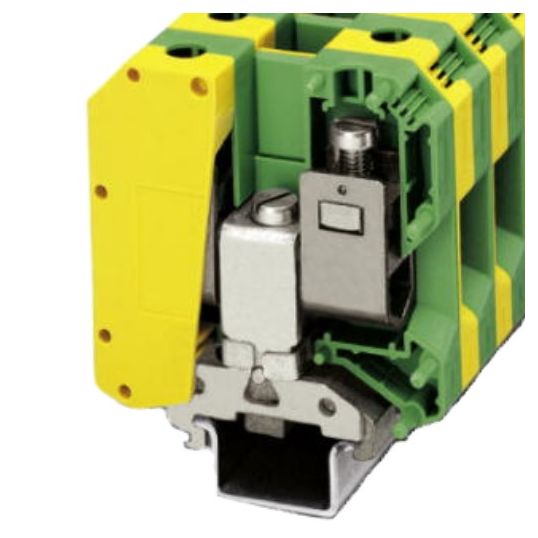

Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 16-50mm Green/Yellow Polyamide

Description

Rail Earth Terminal Block, Rated Surge Voltage: 8 kV, 16-50mm Conductor, 2 Conductors, Wire Strip Length: 24 mm, Tightening Torque: 6 to 8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 83.5 mm NS 35/15, 81 mm NS 32, 70.5 mm Width, 20 mm Depth

Key Specifications

SKU	PHO0443049
Brand	Phoenix Contact
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base Low contact resistance of the contact surface due to ribbing Screw locking by means of spring-loaded elements in the clamping part
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	0443049
Colour	Green/Yellow
Conductor Size	16-50mm
Depth	20 mm
Flammability	V0
Height	83.5 mm NS 35/15; 81 mm NS 32
Insulation Material	Polyamide
Number of Conductors	2
Mounting Method	NS 32 - NS 35/75 - NS 35/15
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	8 kV
Tightening Torque	6-8 Nm
Terminal Type	Screw
Width	70.5 mm
Wiring Format	2 Conductor Through
Wire Strip Length	24 mm
