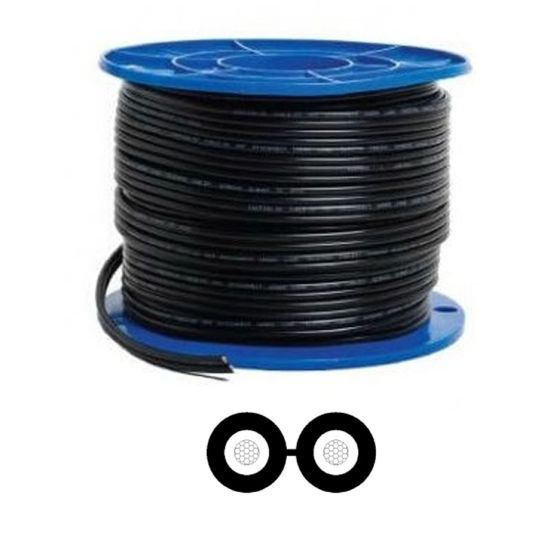

PGK DC Cable 2x4mm 1500V Stranded Tinned Copper XLPE/XLPE Black 500m
Loading...
Description
DC Solar Cable, 2 x 4 mm, Stranded Tinned Copper, 1500 Volt, 52/0.3+/-0.008 mm Strands, 2.46 mm Overall Diameter, 500 mm Length, 0.58 mm Sheath Thickness, >=125% Elongation, >=8 MPa Tensile Strength, <=5.09 Ohm/km, XLPE Insulation, XLPE Sheath, Black Red Insulation, Black Sheath, -40 to 90 deg C, IEC 62930
Key Specifications
| SKU |
PGKSE017DB
|
|---|---|
| Brand |
PGK
|
| Product Type |
Solar Cable DC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | EA |
| Vendor Product | SE017DB |
| Conductor Resistance | <=5.09 Ohm/km |
| Conductor Material | Stranded Tinned Copper |
| Conductor Size | 2 x 4 mm |
| Elongation | >=125% |
| Insulation Colour | Black/Red |
| Insulation Material | XLPE |
| Overall Diameter | 2.46 mm |
| Sheath Colour | Black |
| Sheath Material | XLPE |
| Sheath Thickness | 0.58 mm |
| Standards | IEC 62930 |
| Stranding | 52/0.3+/-0.008 mm |
| Temperature | -40 to 90 deg C |
| Voltage | 1500 Volt |
| Tensile Strength | >=8 MPa |
