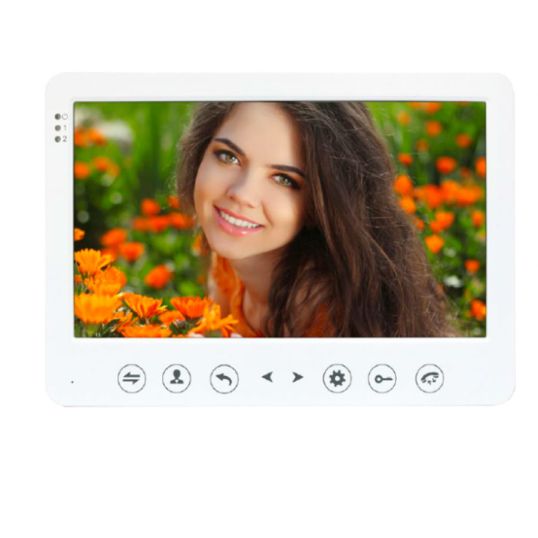

Panacom Video Intercom Kit consist of Monitor & Door station 12VDC 7in TFT LCD Monitor 1.3MP 4 Wire White Monitor

Name: Colour HD Video Intercom Kit c/w 7in White Touch Monitor
SKU: PAN920SKHD
Availability: InStock

$Panacom\Panacom_PAN920SKHD.jpg$

Description

The PAN920SKHD video intercom is a cost effective door entry solution providing HD colour resolution and modern monitor design with touch button controls.. The metal IP65 rated door camera and recording function (when optional microSD card fitted) will provide the added door entry security required for all families.

Key Specifications

Barcode (EAN-13)	9318475001684
SKU	PAN920SKHD
Brand	Panacom

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Kit Components:1 x 7 in LCD HD Monitor with power supply, 1 x 1.3MP Door Station (IP65) with angle bracket, user & installation manual, screws & cable connectors Monitor Features: 4 wired connection Entrance panel/Internal Screen Display Resolution - 800 x 480, Ability to add 4 more monitors Outdoor Camera Features Single push button with illuminated call button, Slim 17.5 mm profile, 45 deg angle bracket included for side wall mounting, LED light for night vision Expandable up to 2 outdoor cameras and 6 internal video monitors & 2 Analogue or AHD CCTV Cameras Cable Requirements 0-50 mtr: 1 x CAT-5e or 1 x 4 core 0.5 mm, 251-100 mtr: 1 x RG59 Coax + 1 x 4 core 0.5 mm
Standard Pack Size	1
UNSPSC Class	46171600
UOM	EA
Vendor Product	PAN920SKHD-NLA
Dimensions	48 x 133 x 17.5 mm Camera/185.3 x 127.3 x 21.5 mm Monitor
Colour	White
Display	7 inch TFT LCD Monitor
Mounting Method	Surface Mount Monitor/45Deg Angle Bracket Side Wall Mount
IP Rating	IP65
Number of Wires	4 Wire
Power Supply	12 Volt DC
Temperature	0 to 50 deg C
Resolution	1.3MP
Viewing Angle	120 deg
