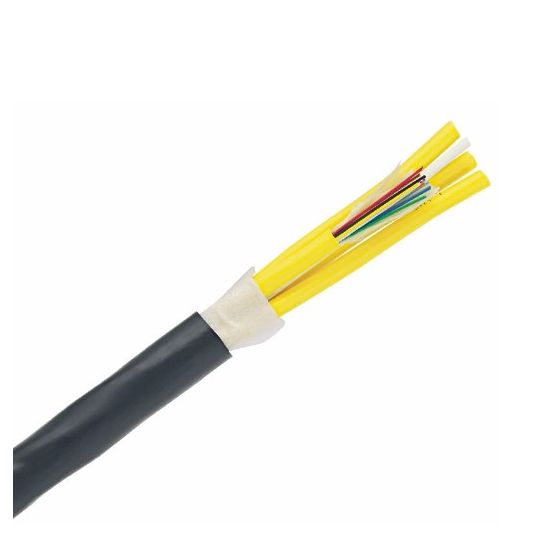

Panduit Opti-Core Fibre Optic Cable Multimode Tight Buffered Indoor/Outdoor OM4 6 Fibre LSZH Black

$Panduit\Panduit_FLKLZ06.jpg$

Description

The Opti-Core Fibre Optic family of cables shall contain 4 to 72 optical fibres. The fibres shall be tight-buffered for easy termination with field-installable connectors. The cables shall be flame rated for use indoors, complying with UL standards for riser and IEC standards for Low Smoke/Zero Halogen (LSZH). The cables shall have UV resistant and water blocking properties for use in outdoor environments. The cables shall have options for single mode (OS2) or multimode fibres (OM3 and OM4) to support 10 Gb/s network transmission and beyond.

Key Specifications

Barcode (EAN-13)	07498385960
SKU	PADFLKLZ06
Brand	Panduit

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	900 micron tight buffered fibres: Easy to handle, strip, and connectorize in the field Flame retardant riser or LSZH jacket: Provides life safety benefits; meets industry standards for smoke and flame and is well suited for indoor installations Water swellable elements: Prevent the migration of water throughout the cable (longitudinally water blocked) Sub-unit design with central strength member: Simplifies fibre identification, provides easy access and routing of fibres, increases cable durability Highest quality OM3 and OM4
Standard Pack Size	1
UNSPSC Class	43223300
UOM	MTR
Vendor Product	FLKLZ06
Attenuation	3.5 dB/km at 850 Nm - 1.5 dB/km at 1300 Nm
Bend Radius	132 mm During Installation/66 mm After Installation
Fibre Core Diameter	50/125 um
Construction	Indoor-Outdoor Tight Buffered All-Dielectric
Fibre Count	6
Fibre Mode	Multimode
Impact Resistance	4.4 Nm
Fibre Type	OM4
Outside Diameter	5.3 mm
Sheath Colour	White
Sheath Material	LSZH
Strength Member	Fiberglass Reinforced Plastic
Temperature	20 to 60 deg C
Tensile Strength	660 N Installation/200 N Operation
Tube Filling	Gel Filled
Tube Size	250 um
