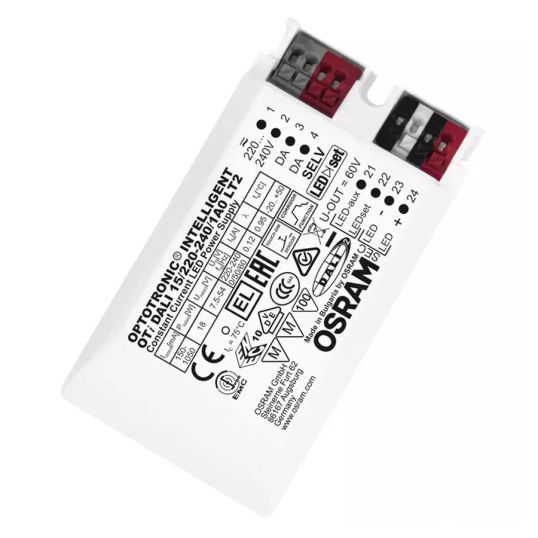

Osram DALI LED Power Supply 18W 220-240V Plastic IP20

Description

DALI LED Power Supply, Input Voltage: 220-240 Volt, Output Voltage: 7.5-54 Volt, 18 Watt, 150-1050 mA, 50/60 Hz, Non-Dimmable, IP20, Power Factor: 0.95, Plastic, -20 to 50 deg C, 95 mm Length, 53 mm Width, 30 mm Height

Key Specifications

Barcode (EAN-13)	4062172061766
SKU	OSROTIDALI15/1A0
Brand	Osram
Range Name	Optotronic
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Versatile DALI window driver due to flexible output characteristic Very high efficiency and reliability Protection of the system thanks to thermal management and Smart Control High-quality dimming of 1 to 100% by amplitude dimming (OTi DALI 15) Suitable for use in luminaries with flexible current setting (DALI, CLO, LEDset) Suitable for indoor SELV installations Suitable for luminaries of protection classes I and II Suitable for downlights, spotlights and LED panels
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	4062172061766
Current	150-1050 mA
Dimmable	Non-Dimmable
Height	30mm
Frequency	50/60 Hz
Input Voltage	220-240 Volt
IP Rating	IP20
Output Voltage	7.5-54 Volt
Power Factor	0.95
Temperature	-20 to 50 deg C
Width	53mm
Wattage	18 Watt
