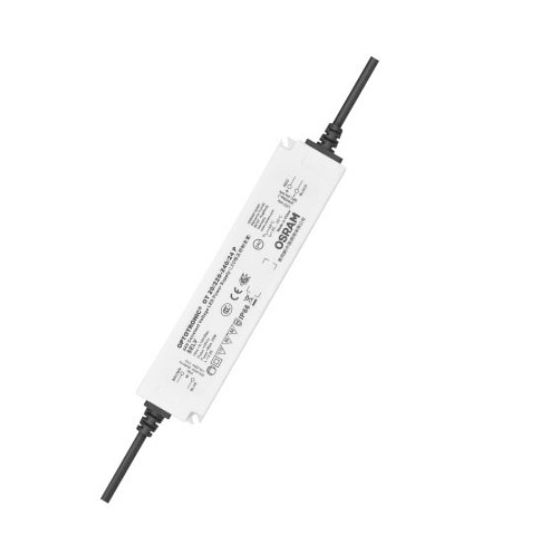

Osram LED Driver Constant Voltage 20W 220-240V Plastic IP66

$Osram\Osram_4052899545922.jpg$

Description

LED Driver Constant Voltage, Input Voltage: 220-240 Volt, Output Voltage: 24 Volt DC, 20 Watt, 830 mA, 0-60 Hz, Non-Dimmable, IP66, Power Factor: 0.95, Plastic, -30 to 55 deg C, 178 mm Length, 43 mm Width, 25 mm Height

Key Specifications

SKU	OSROT20/220-240/24P
Brand	Osram
Product Type	LED Drivers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Large range of products from 20 to 250 Watt Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, over temperature protection Smart power supply: boosting power to turn on cold LEDs Independent installation possible DC mode functionality Surge protection: up to 4 kV (L-N)/6 kV (L/N-PE) Lifetime: up to 50,000 hrs (temperature at max. tc) For facades, public squares, cruise ships and signage
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	4052899545922
Current	830 mA
Dimmable	Non-Dimmable
Frequency	0-60 Hz
Height	25mm
Input Voltage	220-240 Volt
IP Rating	IP66
Output Voltage	24 Volt DC
Power Factor	0.95
Wattage	20 Watt
Temperature	-30 to 55 deg C
Width	43mm
