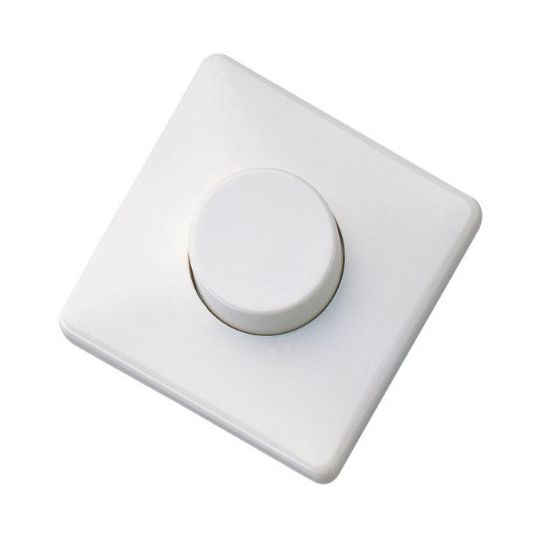

Osram Dimming Controller 2W 230V IP20 White F/DALI MCU

Description

Dimming Controller, Input Voltage: 230 Volt, 2 Watt, 50/60 Hz, Dimmable, For Use With: DALI MCU, IP20, White, 0 to 50 deg C, 80 mm Length, 80 mm Width, 50 mm Height

Key Specifications

Barcode (EAN-13)	4008321189721
SKU	OSRDALIMCU/230
Brand	Osram
Product Type	Dimmers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Intuitive manual dimming and switching Individual setting of minimal brightness level Up to 4 DALI MCUs can be connected in parallel to set up multiple control points Automatic synchronization between the control points Cover and rotary switch in neutral white Length of the DALI control cable: up to 300 m For conference rooms, restaurants and shop lighting
Standard Pack Size	1
UNSPSC Class	32151900
UOM	EA
Vendor Product	4008321189721
Colour	White
Dimmable	Dimmable
For Use With	DALI MCU
Frequency	50/60 Hz
Height	50 mm
Input Voltage	230 Volt
IP Rating	IP20
Wattage	2 Watt
Temperature	0 to 50 deg C
Width	80 mm
