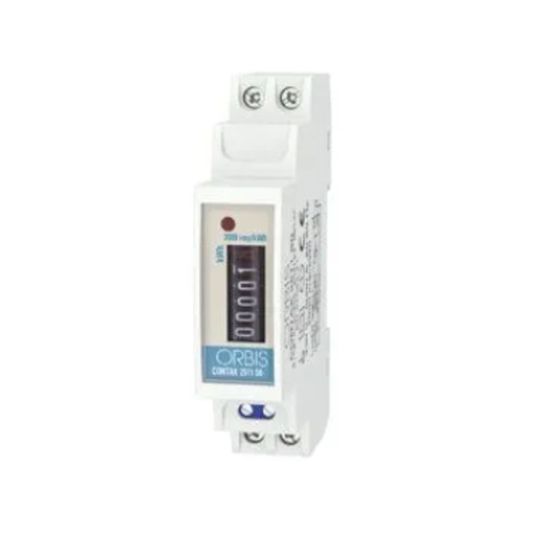

Orbis Kilowatt Hour Meter Electromechanical 1 Module 0.02-25A 0.5VA 230V 230V

$Orbis\Orbis_CONTAX2511S0230.jpg$

Description

Kilowatt Hour Meter Electromechanical, 5 Digits Digits + 1 Decimal, 230 Volt AC, 50/60 Hz, Analogue Display, IP20, DIN Rail Mount, -20 to 50 deg C, 88 mm Height, 18.3 mm Width, 65.5 mm Depth

Key Specifications

Barcode (EAN-13)	8426709104160
SKU	ORBCONTAX2511S0-230
Brand	Orbis
Product Type	Kilowatt Hour Meters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Analog single-phase kilowatt meter, one module width Reduced dimensions for electric panels with space restrictions Analogical display, 5 digits + 1 decimal non-resettable Opto-isolated pulse output communications LED consumption indicator Consumption control in machinery and facilities applications
Standard Pack Size	10
UNSPSC Class	41113600
UOM	EA
Vendor Product	CONTAX2511S0-230
Depth	65.5 mm
Display	Analogue
Frequency	50/60 Hz
Input	230 Volt
Height	88 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number of Digits	5 Digits + 1 Decimal
Width	18.3 mm
Temperature	-20 to 50 deg C
