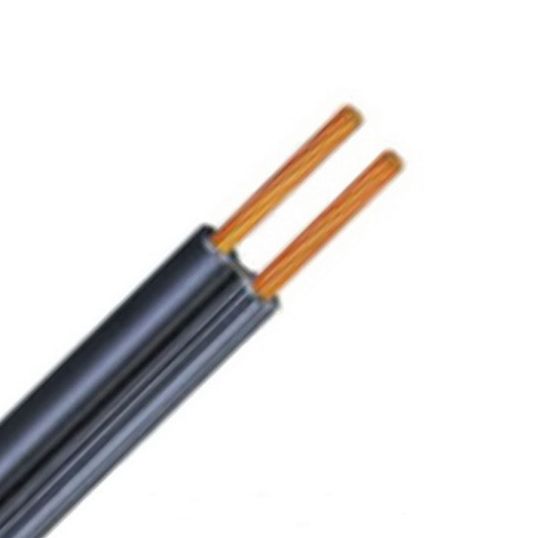

Olex Flexible Wire 2 Core Figure 8 6mm 250/440V Plain Annealed Copper PVC/PVC Grey/Black
Loading...
Description
Flexible Cable Figure 8, 6 mm, Annealed Copper, 250-440 Volt, 42 Amp, 2 Core, 81/0.3 mm Strands, 6 mm x 12.5 mm Overall Diameter, DC: 3.3 Ohm/km Conductor Resistance, PVC Insulation, PVC Sheath, Grey/Black Sheath
Key Specifications
| Barcode (EAN-13) |
9319215311322
|
|---|---|
| SKU |
OLXJSF6GLBK100
|
| Brand |
Olex
|
| Product Type |
Flexible Cable Figure 8
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | JSF6GLBK100 |
| Conductor Resistance | DC: 3.3 Ohm/km |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Current | 42 Amp |
| Insulation Material | PVC |
| Number of Cores | 2 Core |
| Overall Diameter | 6 mm x 12.5 mm |
| Sheath Colour | Grey/Black |
| Sheath Material | PVC |
| Stranding | 81/0.3 mm |
| Voltage | 250-440 Volt |
