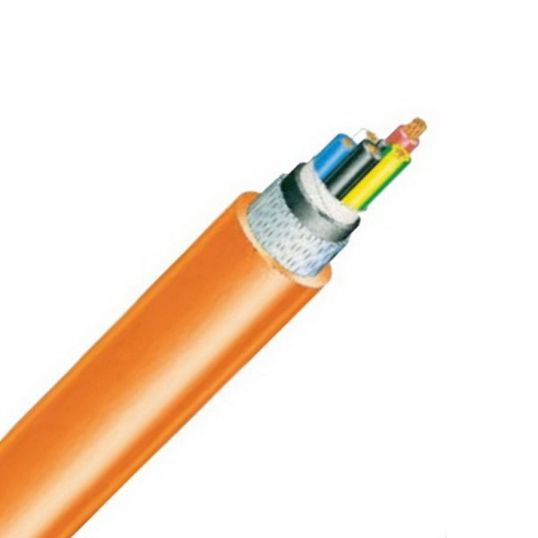

Olex 120 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/PVC 1mtr

$Olex\Olex_Circular_Armoured_4C-E_OR.jpg$

Description

Circular Cable, Armoured, 120 mm, Stranded Copper, 0.6-1 kV, 4 Core + Earth, 53.5 mm Overall Diameter, 43.4 mm Bedding Diameter, 48.4 mm Diameter Over Armour, 35 mm Earth Conductor, 1 mtr Length, 640 mm After Installation Bend Radius, 1.2 mm Insulation Thickness, 6.4 kN Pulling Tension, DC: 0.153 Ohm/km AC: 0.196 Ohm/km Conductor Resistance, 300 MOhm/km Insulation Resistance, Steel Wire Armour, Red/Black/White/Blue/Green/Yellow Core, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	OLXHTMP23AA004OMAA
Brand	Olex
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	HTMP23AA004OMAA
Bedding Diameter	43.4 mm
Armour Material	Steel Wire
Conductor Resistance	DC: 0.153 Ohm/km AC: 0.196 Ohm/km
Core Colours	Black/Blue/Red/White/Green/Yellow
Conductor Type	Stranded Copper
Conductor Size	120 mm
Bend Radius	640 mm After Installation
Diameter Over Armour	48.4 mm
Earth Conductor Size	35 mm
Insulation Thickness	1.2 mm
Insulation Material	X-90 XLPE
Insulation Resistance	300 MOhm/km
Number of Cores	4 Core + Earth
Overall Diameter	53.5 mm
Pulling Tension	6.4 kN
Sheath Material	PVC
Sheath Colour	Orange
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
