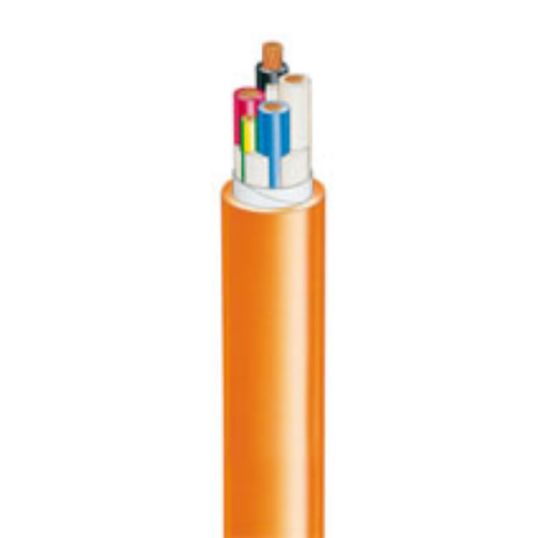

Olex 150mm Orange Circular Cable Unarmoured X-90 XLPE/PVC 1mtr

$Olex\Olex_XLPE_PVC_4C-E.jpg$

Description

Circular Cable Unarmoured, 150mm, Stranded Copper, 0.6-1 kV, 4 Core + Earth, 49.5mm Overall Diameter, 50mm Earth Conductor, 1 mtr Length, 300mm Bend Radius, 1.4mm Insulation Thickness, 2.4mm Sheath Thickness, DC: 0.124 Ohm/km AC: 0.16 Ohm/km Conductor Resistance, 320 MOhm/km Insulation Resistance, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	OLXHTHP24AA004OMAA
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	HTHP24AA004OMAA
Conductor Resistance	DC: 0.124 Ohm/km - AC: 0.16 Ohm/km
Bend Radius	300 mm
Conductor Size	150 mm
Conductor Type	Stranded Copper
Earth Conductor Size	50 mm
Insulation Resistance	320 MOhm/km
Insulation Material	X-90 XLPE
Insulation Thickness	1.4 mm
Number of Cores	4 Core + Earth
Overall Diameter	49.5 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	2.4 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
