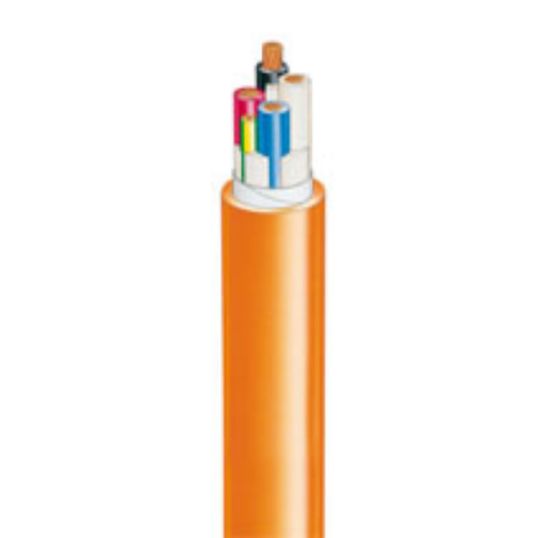

Olex 50mm Orange Circular Cable Unarmoured X-90 XLPE/PVC 1mtr

Description

Circular Cable Unarmoured, 50mm, Compacted Copper, 0.6-1 kV, 4 Core + Earth, 29.3mm Overall Diameter, 16mm Earth Conductor, 1 mtr Length, 230mm Bend Radius, 1mm Insulation Thickness, 1.9mm Sheath Thickness, AC: 0.494 Ohm/km Conductor Resistance, 410 MOhm/km Insulation Resistance, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	OLXHTHC19AA004OMAA
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	HTHC19AA004OMAA
Bend Radius	230 mm
Conductor Resistance	AC: 0.494 Ohm/km
Conductor Size	50 mm
Conductor Type	Compacted Copper
Insulation Resistance	410 MOhm/km
Insulation Thickness	1 mm
Insulation Material	X-90 XLPE
Earth Conductor Size	16 mm
Number of Cores	4 Core + Earth
Overall Diameter	29.3 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.9 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
