Olex 50 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 1mtr
Loading...
Description

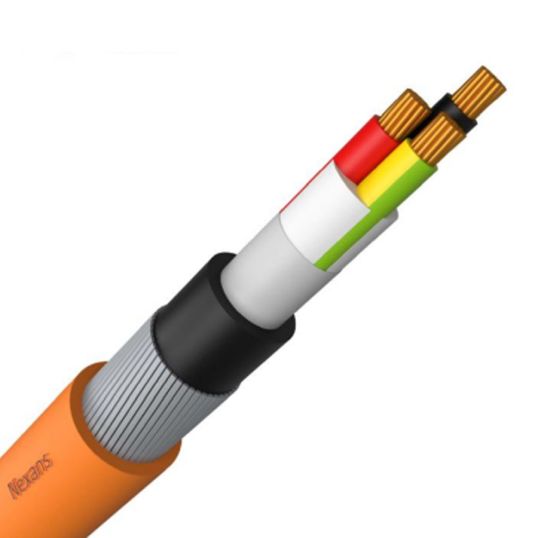

Circular Cable 3 Core + Earth, 50 mm, Class 2 Copper, 0.6/1 kV, 3 + Earth, 31.8mm Overall Diameter, 24.7mm Bedding Diameter, 27.9mm Diameter Over Armour, 16 mm Earth Conductor, 1mm Insulation Thickness, AC: 0.494 Ohm/km, DC: 0.387 Ohm/km, 410 Mohm/km Insulation Resistance, Steel Wire Armour, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, AS/NZS 1125; AS/NZS 5000.1
Key Specifications
| SKU |
OLXFTMC19AA003OMAA
|
|---|---|
| Brand |
Olex
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FTMC19AA003OMAA |
| Armour Material | Steel Wire |
| Bedding Diameter | 24.7 mm |
| Conductor Resistance | AC: 0.494 Ohm/km/DC: 0.387 Ohm/km |
| Conductor Type | Class 2 Copper |
| Earth Conductor Size | 16 mm |
| Conductor Size | 50 mm |
| Diameter Over Armour | 27.9 mm |
| Insulation Resistance | 410 Mohm/km |
| Insulation Material | XLPE |
| Insulation Thickness | 1 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 31.8 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 1125; AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
